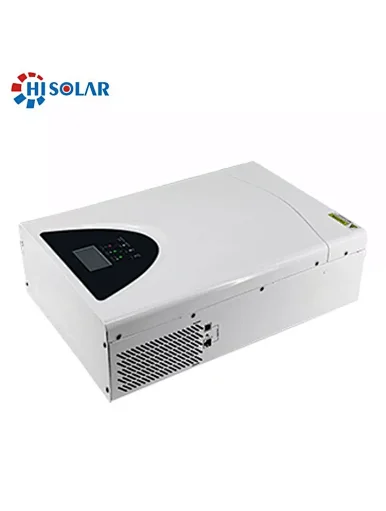

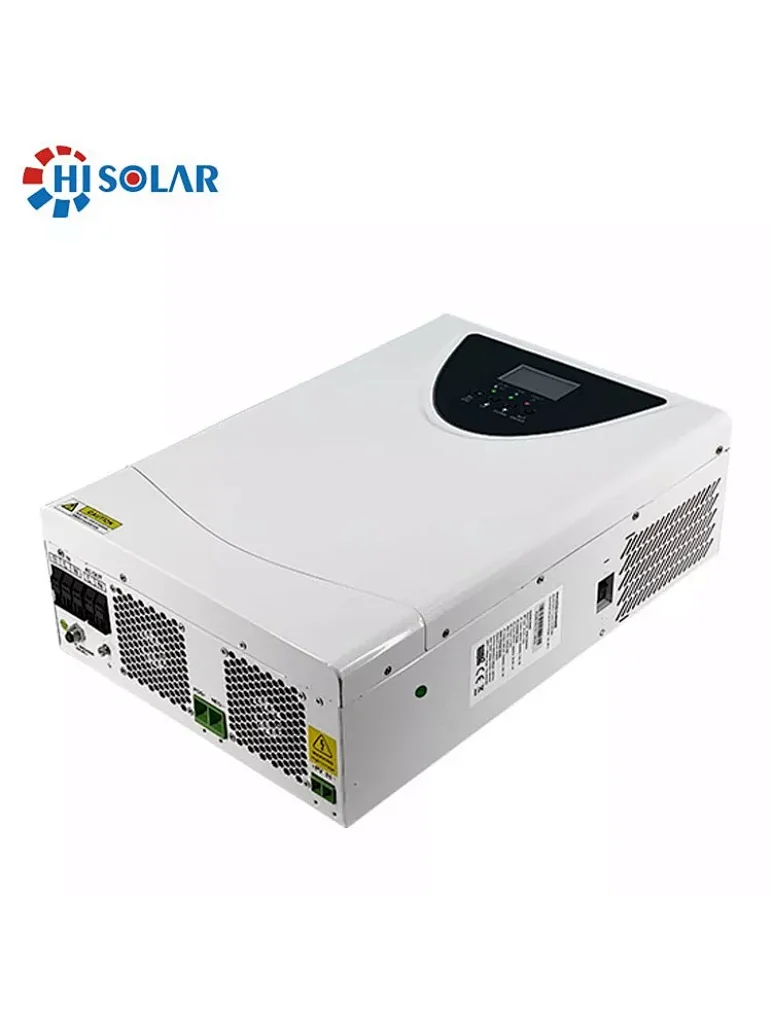

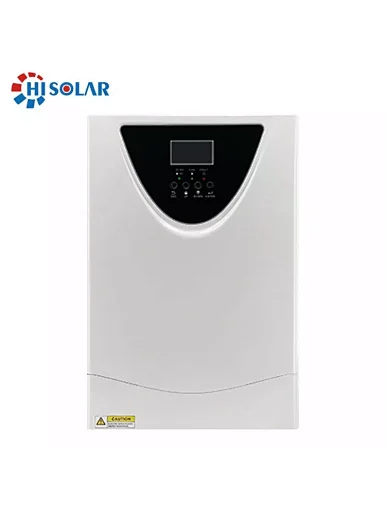

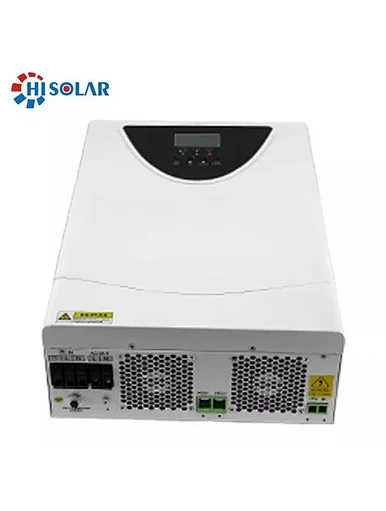

XTHF5KVAPC Multi Functional Off Grid Hybrid Inverter

XTHF5KVAPC Multi Functional Off Grid Hybrid Inverter
XTHF5KVAPC Multi Functional Off Grid Hybrid Inverter
Quantity

The Multi Functional Off Grid Hybrid Inverter, it combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features:

  1. High efficiency pure sine wave inverter (PF=0.8);
  2. Max.PV input 145Vdc with 80A MPPT Inbuilt;
  3. Intelligent 3 stage 60A AC battery charger;
  4. Surges to 2X continuous power for 5 seconds for motor loads;
  5. Intelligent functionality enables utility and solar input prioritization;
  6. Wide utility input range(90Vac-280Vac) for unreliable grid even in the most challenging environments;
  7. Field serviceable with replacement boards and spare parts;
  8. Monitor,troubleshoot,or communication with USB/RS232/WIFI;

This model Parallel connections supported up to 9 units to set as 45KVA system

Technical Specifications
