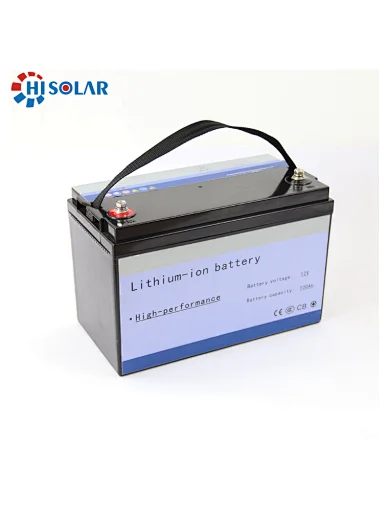

Solar 12V 100Ah 200Ah LiFePO4 Lithium Ion Batter

Solar 12V 100Ah 200Ah LiFePO4 Lithium Ion Batter
Solar 12V 100Ah 200Ah LiFePO4 Lithium Ion Batter
Quantity
Product Paramenters
S/NProjectGeneral Parameter
1Number of series4S
2Rated voltage12V
3End of discharge voltage48V
4Charging voltage14.2-14.6V
5Charge Mode0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
6Cycle Life>2000 cycles @0.5C 100%DOD
7Self-discharge rate≤3%/month
8range of working temperature
(≤95%R.H.)
0~50℃ charge
-20~60℃ discharge
9Storage temperature range(≤95%R.H.)0~45℃
10Max Continuous Discharge Current100A (Can be customized)
11Max. Charge Current100A
12Protective functionOvercharge, over discharge, short circuit, overload, over temperature, etc.
13certificateMSDS,ISO9001,CE,UN38.3
