Quick Details
Controller Type:MPPT
Inverter Type:
Pure Sine Wave
Battery Type:
Lithium Ion
Power Source:
Other, Solar Panel
Model Number:
48100 POWERWALL
Brand Name:
HISOLAR
Place of Origin:
Jiangsu, China
Nominal Voltage:
48V
Dimension:
365*173.5*480MM
weight:
46KG
Self-discharge rate:
≤2%/month
AC Impedance resistance (1KHz):
≤100mΩ
Recommend SOC window:
10%~99%
Charge temperature:
0℃ ~65℃
Discharge temperature:
-20℃ ~65℃
Warranty:
1YEARS
Certification:
CE/MSDS/UN38.3/ISO9001/ROSH
Supply Ability
Supply Ability
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Strictly follow UN38.3
Port
Guangzhou/Hongkong/Shenzheng

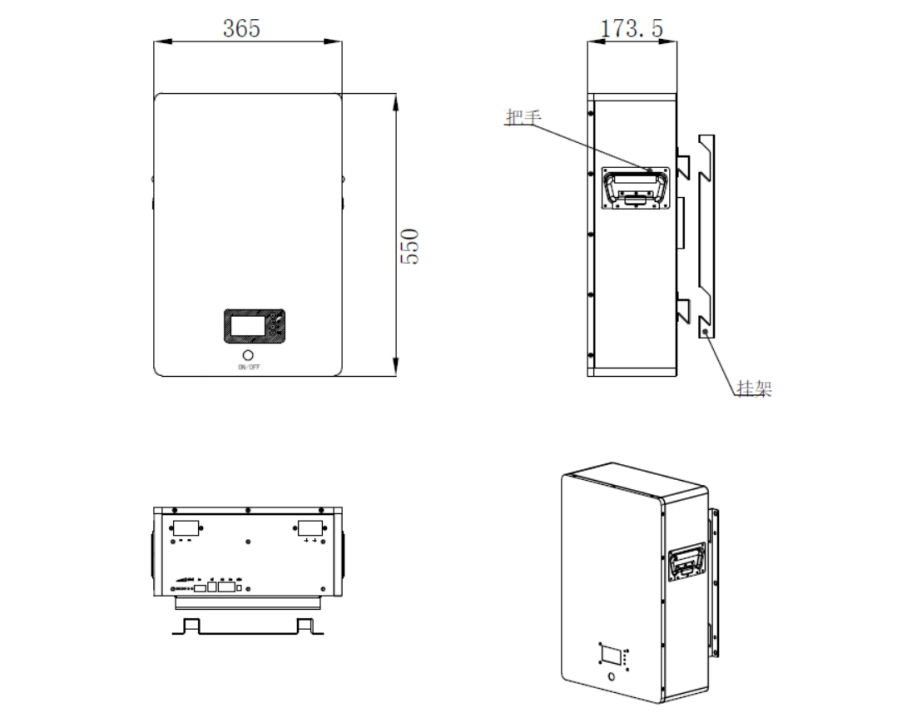

| Weight/KG | Outside Dimensions/MM （no protrusions） | ||
| Width | Height | Thickness | |
| 40KG | 365 | 480 | 173.5 |
Products Description
| S/N | Project | General Parameter |
| 1 | Number of series | 15S |
| 2 | Rated voltage | 48V |
| 3 | End of discharge voltage | 40V |
| 4 | Charging voltage | Recommend 51V (50.5V – 51.5V) for floating charge Recommend 54V (53.5V – 54.5V) for equation charge |
| 5 | Continuous charge and discharge current | ≤100A |
| 6 | Internal resistance (battery pack) | ≤100mΩ |
| 7 | Self-discharge rate | ≤2%/month |
| 8 | range of working temperature （≤95%R.H.） | 0～65℃ charge -20～65℃ discharge |
| 9 | Storage temperature range（≤95%R.H.） | -40～70℃ |

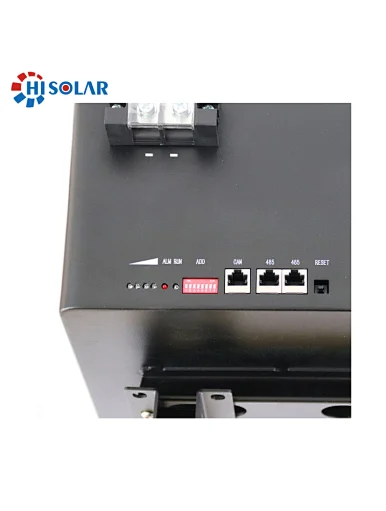

| 10 | Positive and negative lead way | Fence Terminal 2P*2 |

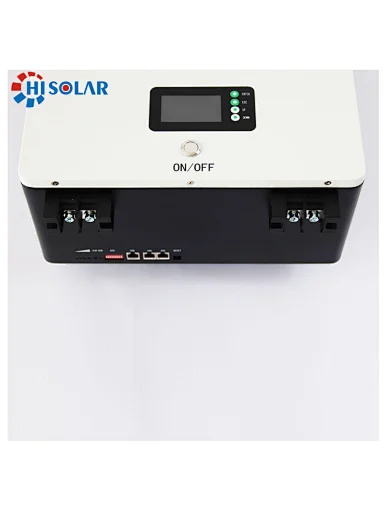

| 11 | Display screen | LED display, four physical buttons |
| 12 | Protective function | Overcharge, over discharge, short circuit, overload, over temperature, etc. |
| 13 | certificate | ISO9001,CE,CB,UN38.3,MSDS |
