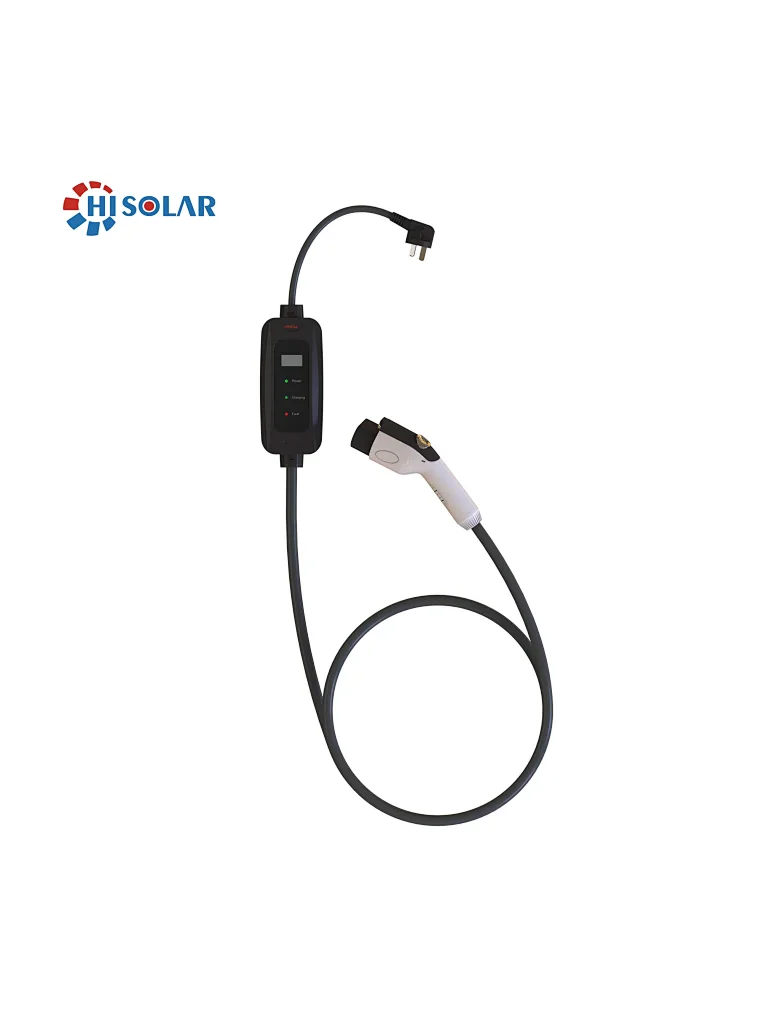

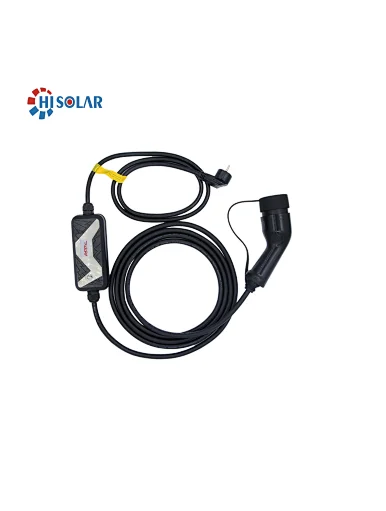

AC 3.5KW 7kw EV Charging adaptor
AC 3.5KW 7kw EV Charging adaptor
AC 3.5KW 7kw EV Charging adaptor
AC 3.5KW 7kw EV Charging adaptor
AC 3.5KW 7kw EV Charging adaptor

AC 3.5KW 7kw EV Charging adaptor

Model NO.
AF-AC-3.5KW 16A
Quantity:
Brief introduction:
AC EV charging station provides AC 50Hz, rated voltage 220V AC power supply, and is supplied to an electric vehicle with a vehicle charger.Mainly applicable to the following places Large, medium and small electric vehicle charging stations;Various public places with electric car parking spaces, such as urban residential quarters, shopping plazas,and electric power business places;High-speed service area, station terminal and other transportation hub areas.







                  Specification
Power Input
Phases/Lines1-phase + Neutral +PE
Voltage230V t 10%
Frequency50Hz
Power Output
Voltage230V t 10%
Current13A
Power3.5kW
Structure Design
Housing MaterialPlastic PC940
LED Indicator4 indicators
Power Cord PlugSchuko
Charging outletOne charging gun (Type 2)
Cable Length4M
Working Humidity5%~95% without condensation
Working Altitude<2000M
Protection GradeIP65
Application SiteIndoor/Outdoor
Cooling MethodNatural Cooling
Security Protection
Multiple ProtectionOver/Under voltage protection,0ver/Under frequency protection,Over/Undertemperature protection,
 Over current protection,Current leakage protection,Grounding protection
MTBF100,000 hours
Safety StandardIEC 61851-1; IEC 62196-2
Warranty2years
Package Information
Product Dimension195*74*47mm
Package Dimension360*295*1 55mm
Net Weight1.5kg
Gross Weight2.4kg
External PackingCarton
