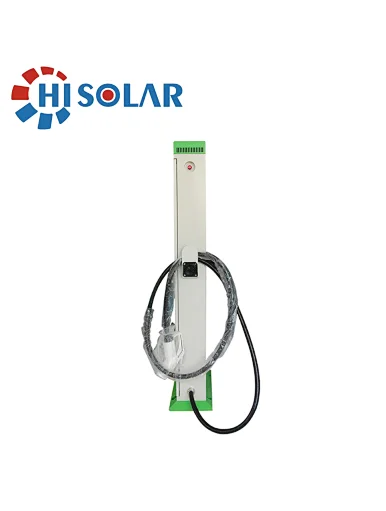

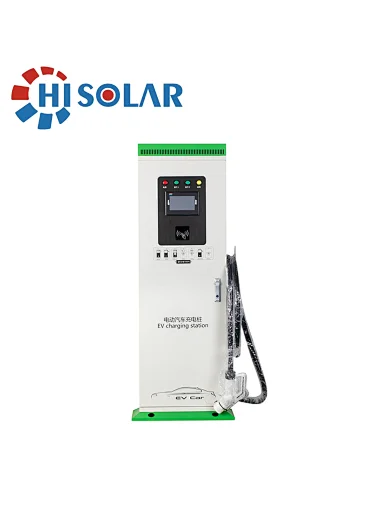

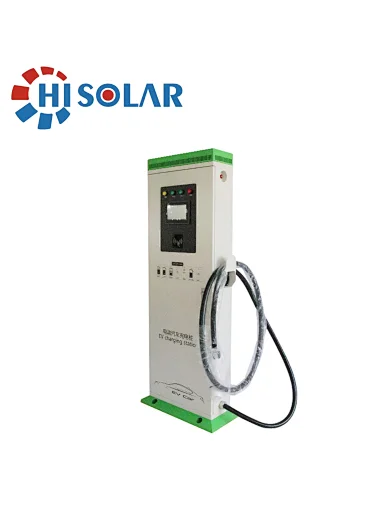

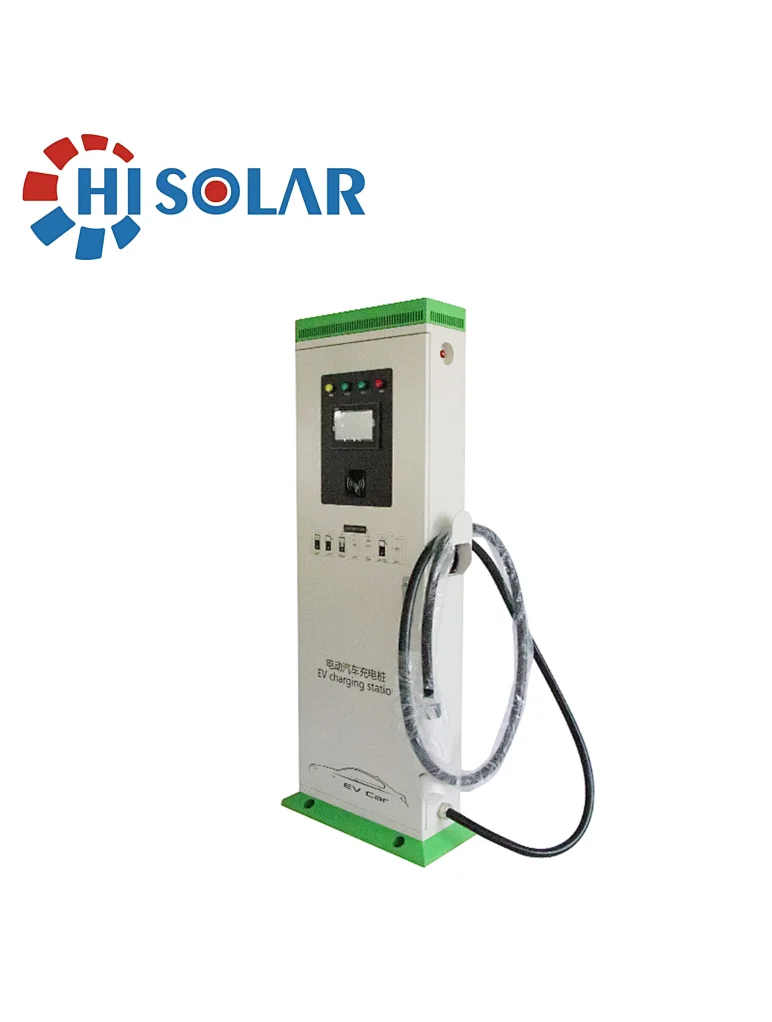

3 Phase 30KW 40Kw EV Charger Outdoor DC Charger Stations
3 Phase 30KW 40Kw EV Charger Outdoor DC Charger Stations
3 Phase 30KW 40Kw EV Charger Outdoor DC Charger Stations
3 Phase 30KW 40Kw EV Charger Outdoor DC Charger Stations
3 Phase 30KW 40Kw EV Charger Outdoor DC Charger Stations
3 Phase 30KW 40Kw EV Charger Outdoor DC Charger Stations
3 Phase 30KW 40Kw EV Charger Outdoor DC Charger Stations
3 Phase 30KW 40Kw EV Charger Outdoor DC Charger Stations
3 Phase 30KW 40Kw EV Charger Outdoor DC Charger Stations

3 Phase 30KW 40Kw EV Charger Outdoor DC Charger Stations

Model NO.
AF-DC-30KW/40KW
Quantity:

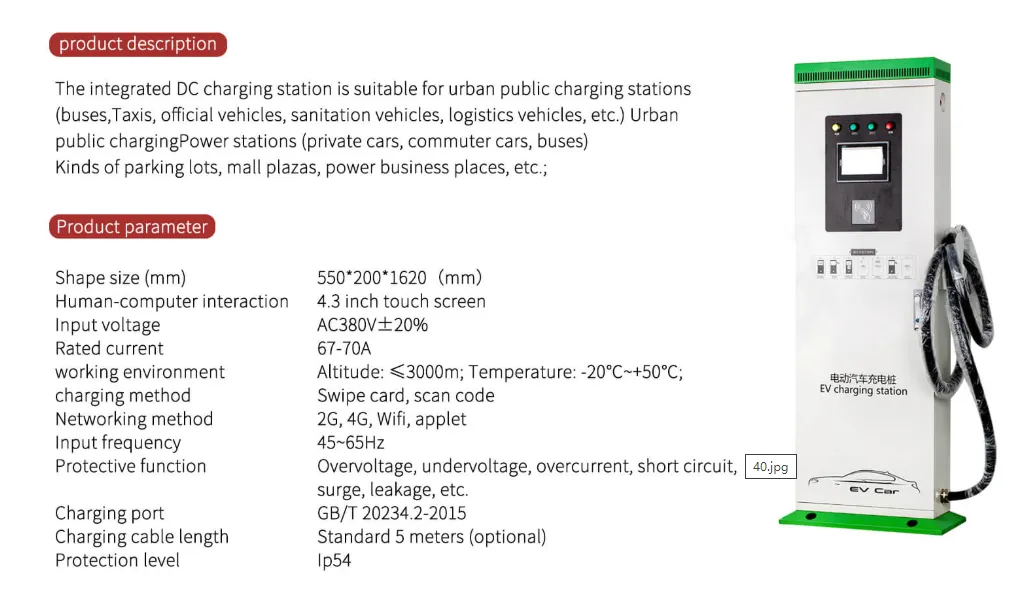

       Specification
Rated Power30kw
MountingFloor Mounting

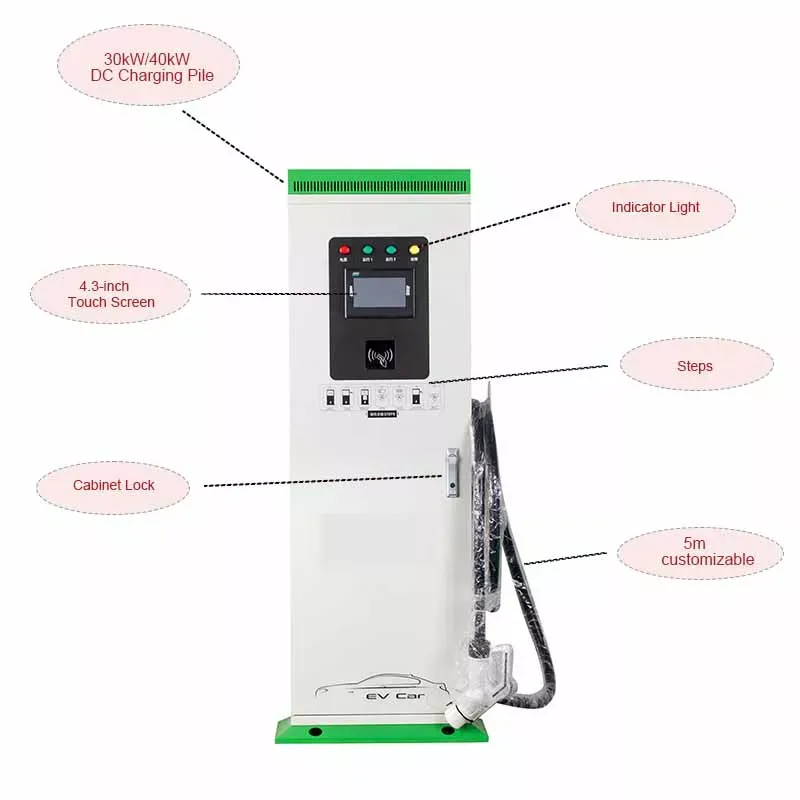

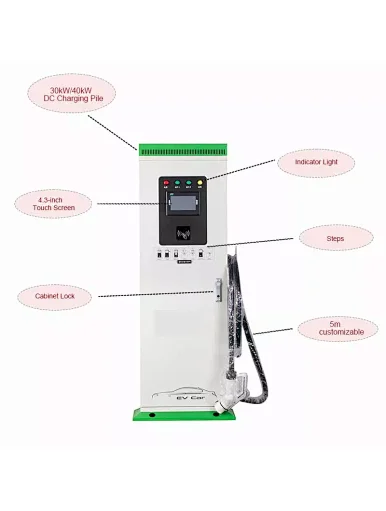

User Interface4.3Display screen LED indicator

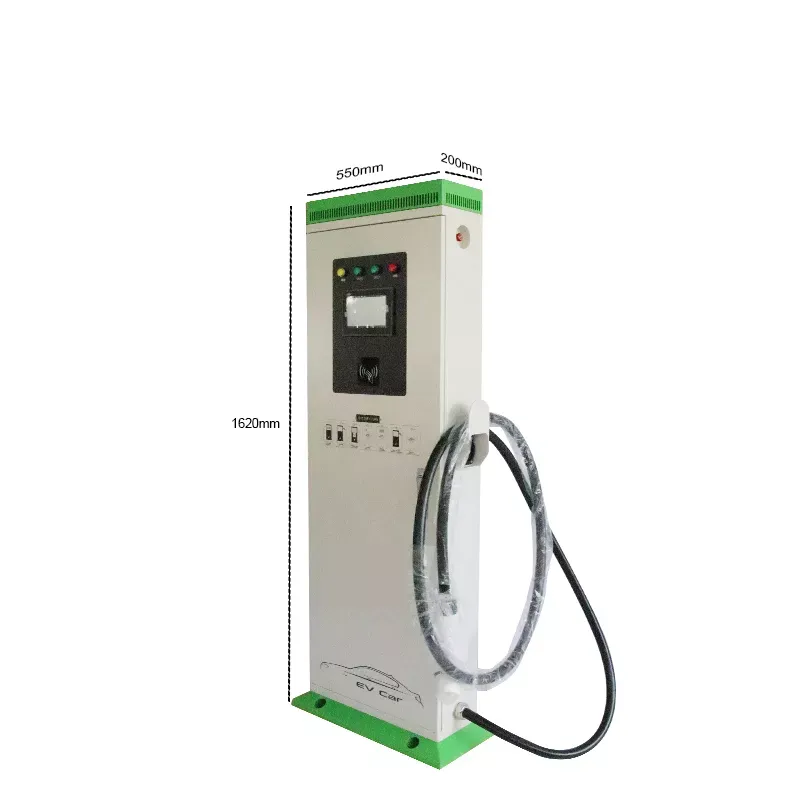

Dimension550*200*1620mm
Input voltageAC380V±20%
Input frequency45~65Hz
Output current67-70A
CertificateCE TUV
Chargeing Method swiping RFID card/scan code
Communication Interface4G/WIFI/App
Work temperature-20℃~50℃
Work altitude≤3000m
Work humidity-5%~95% non-condensation
Protection Level IP54
Charging Wire length5M(standard) support customize
Warranty1 Year
Protection FuctionOver Voltage Protection,
Under voltage Protection

Short Circuit Protection,
Earth Leakage Protection
Over-temp Protection,
Lighting Protection
