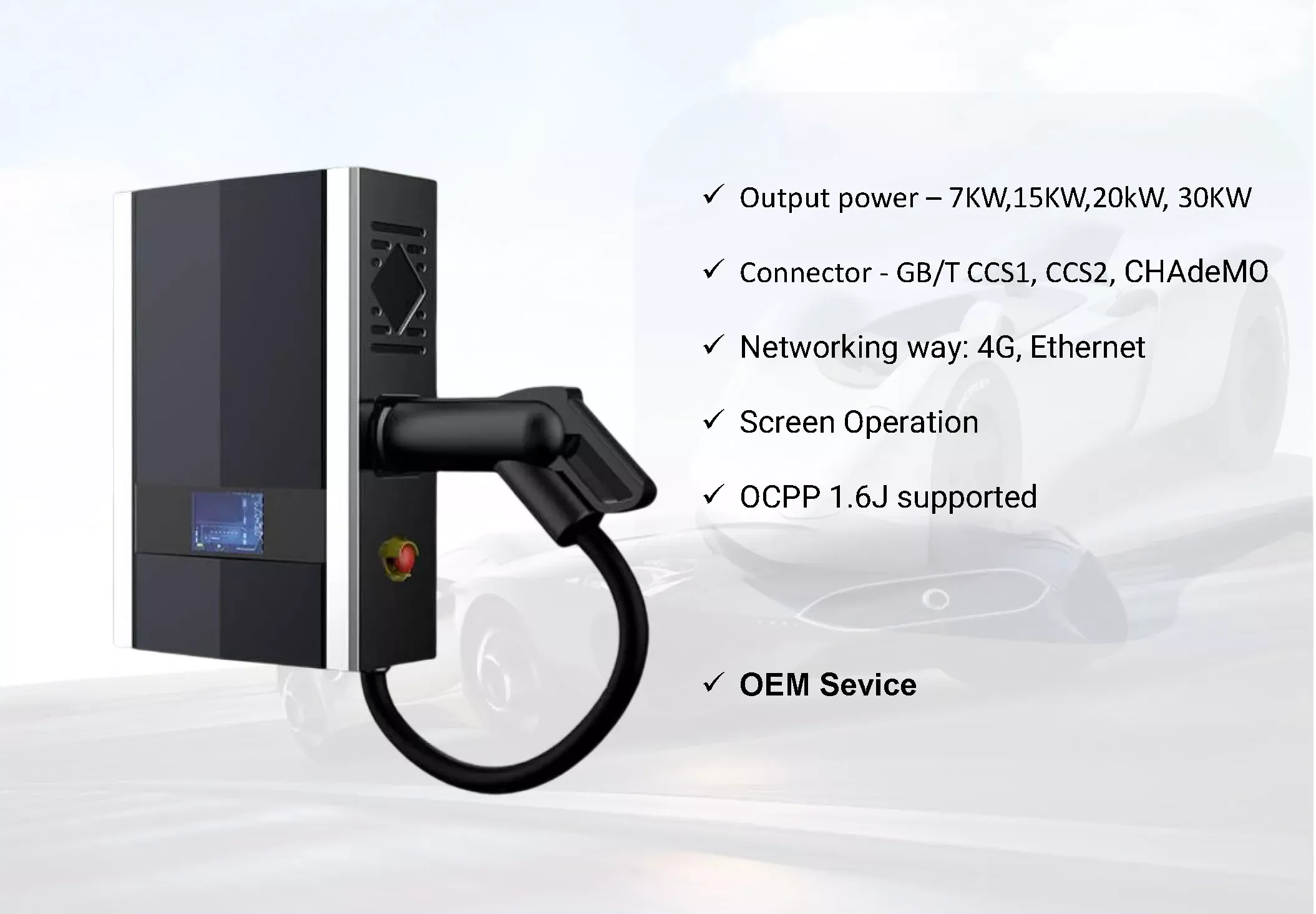

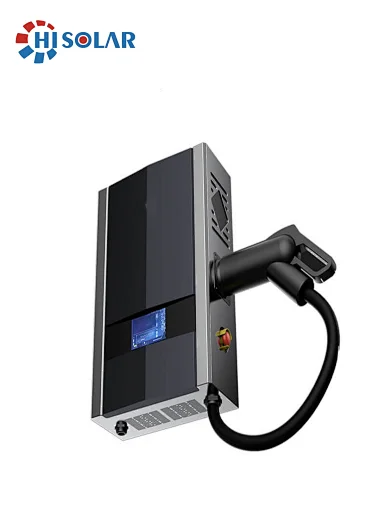

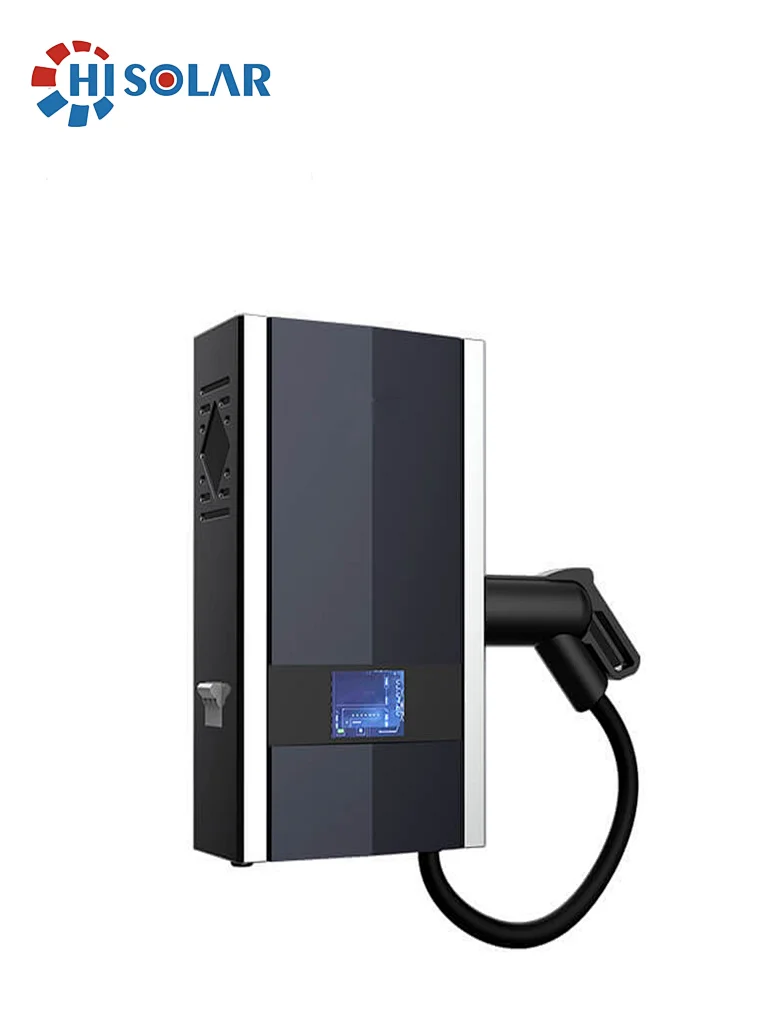

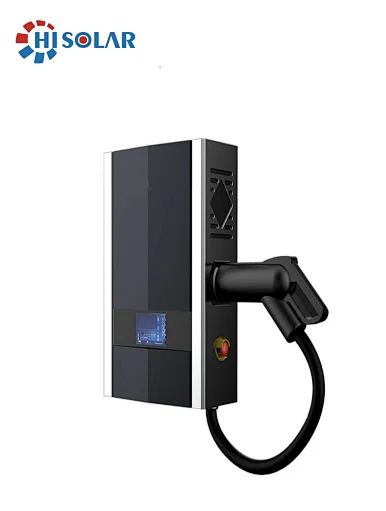

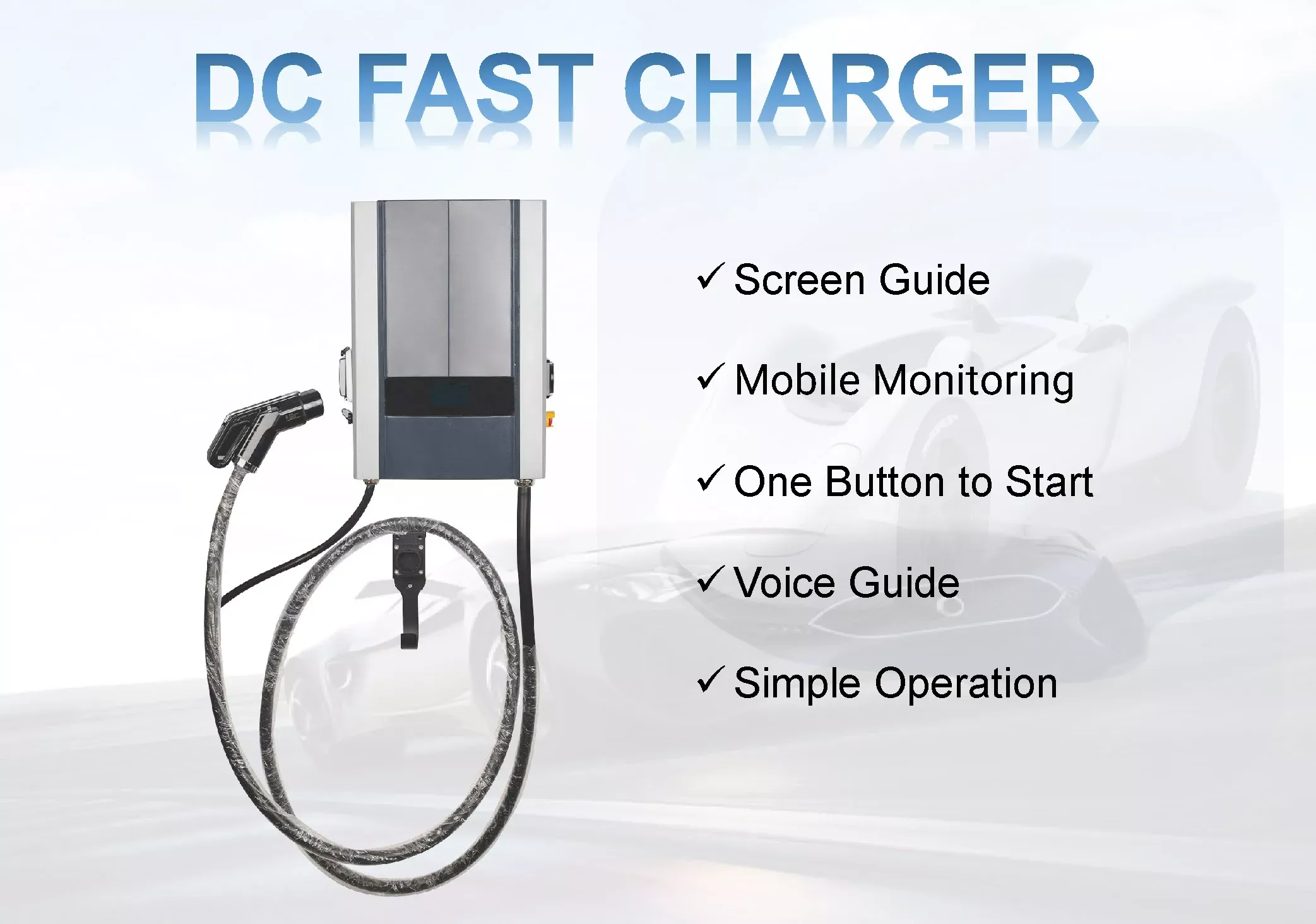

7kw 30KW New Energy Vehicle Charging Pile

Model NO.
KY-DC7KW/15KW/20KW/30KW
Quantity:





Production Parameters
Model 30KW
AC Input Input Rating 380Vac±10%
AC Input Connection 3P+N+PE.Wve connection
Max. Input Current 50A
Frequency 50/60 Hz
Power Factor >0.99@full load
Efficiency95%
DC Output Output Voltage Range 200-750Vdc
Max.Output Power 30KW
Max.Output Current 100A
User InterfaceTFTLCD Touch Panel  Yes(swiping card without TFT-LCD Touch Panel)
Push Buttons Yes
Interface Yes
PackingDimensionW:548x378x250mmU:1500x520x250mm

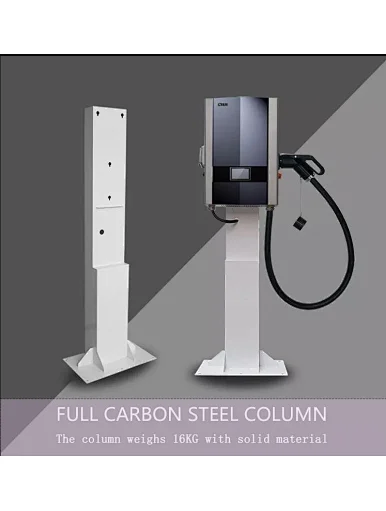

Weight Wall:45KG Upright:50KG
EnvironmentalOperating Temperature -40~85℃,25℃(TYPE)
Humidity 5%-90%RH,non-condens,ng
Altitude 2000m
IP Level IP54
MechanicalCable Length5M(CHAdeMO).5M(CCS).5M(GB/T)Customized acceptable
Regulation  EN61851-1
RegulationCertificationCE,ROHS
Charging protocolCHADEMO2.0/DN70121/SD1S118//IEC618SI23.IEC618SI-24
