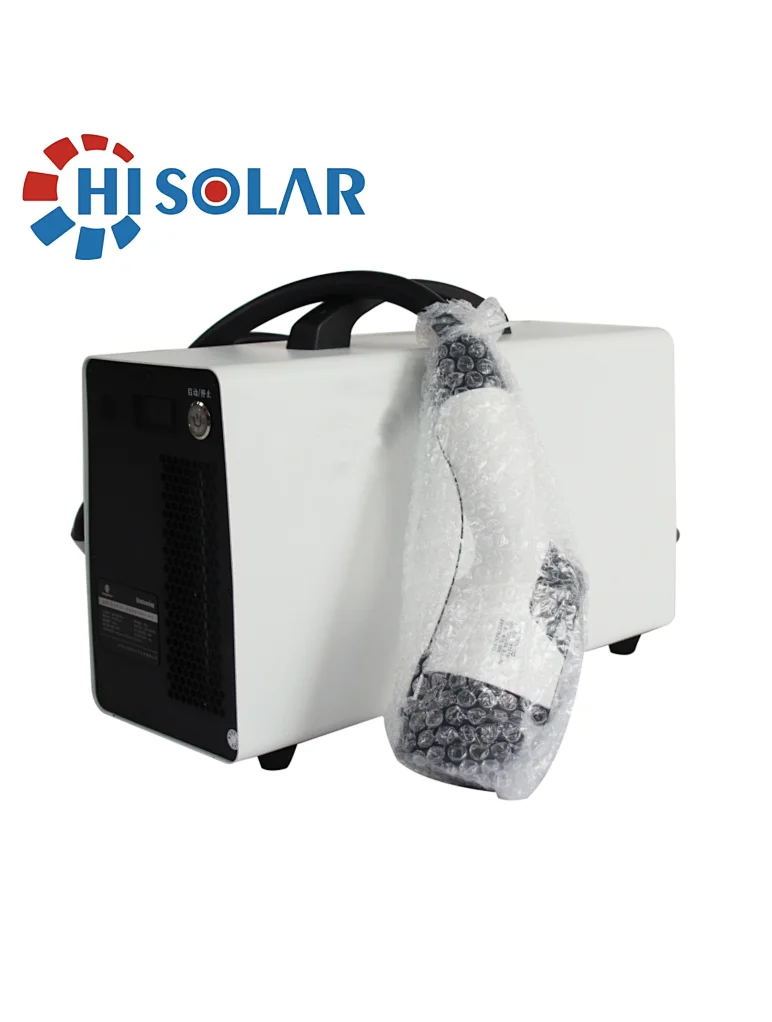

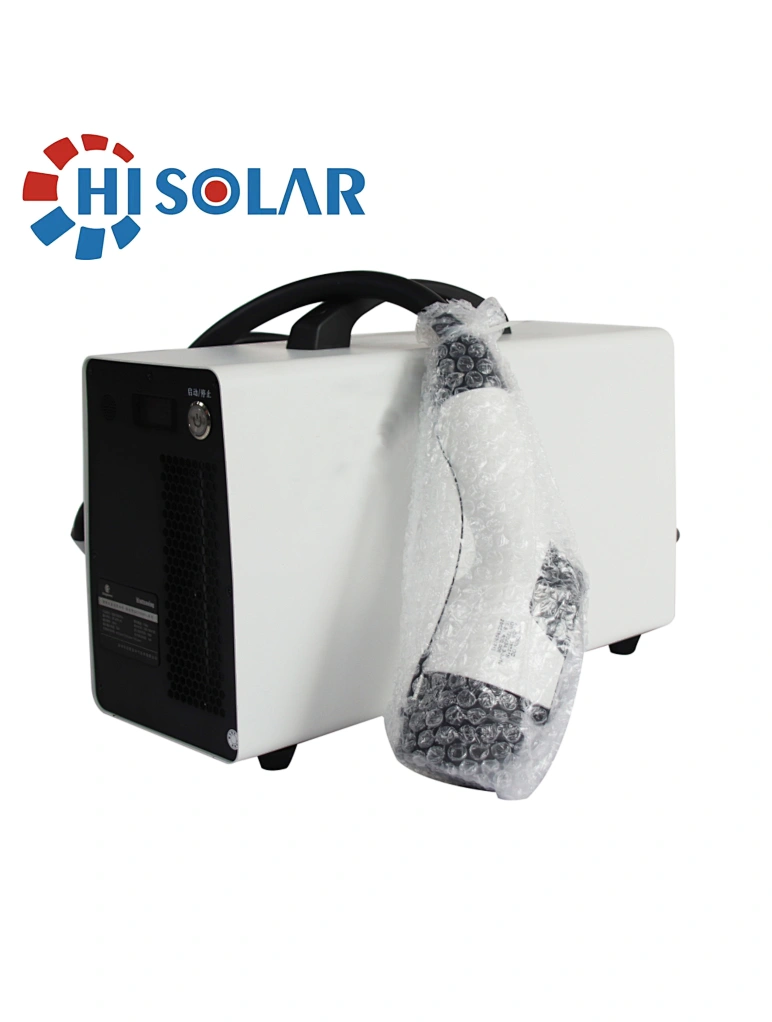

7KW 15KW 20KW quick car fuel cell dc fast chargers  level 2 dual home charging station
7KW 15KW 20KW quick car fuel cell dc fast chargers  level 2 dual home charging station

7KW 15KW 20KW quick car fuel cell dc fast chargers level 2 dual home charging station

Model NO.
AF-DC-7KW/15KW/20KW
Quantity:






     Specification
Model                                           30KW
AC InputInput Rating380Vac±15%
AC Input Connection3P +N +PE,Wye connection
Max. Input Current60A
Frequency50/60 Hz
Power Factor>0.99@full load
Efficiency95%
DC Out putOutput Voltage Range200-750Vdc
Max. Output Power30KW
Max. Output Current100A
User Interface TET-LCD Touch PanelNo
Push Buttons No
InterfaceUSB

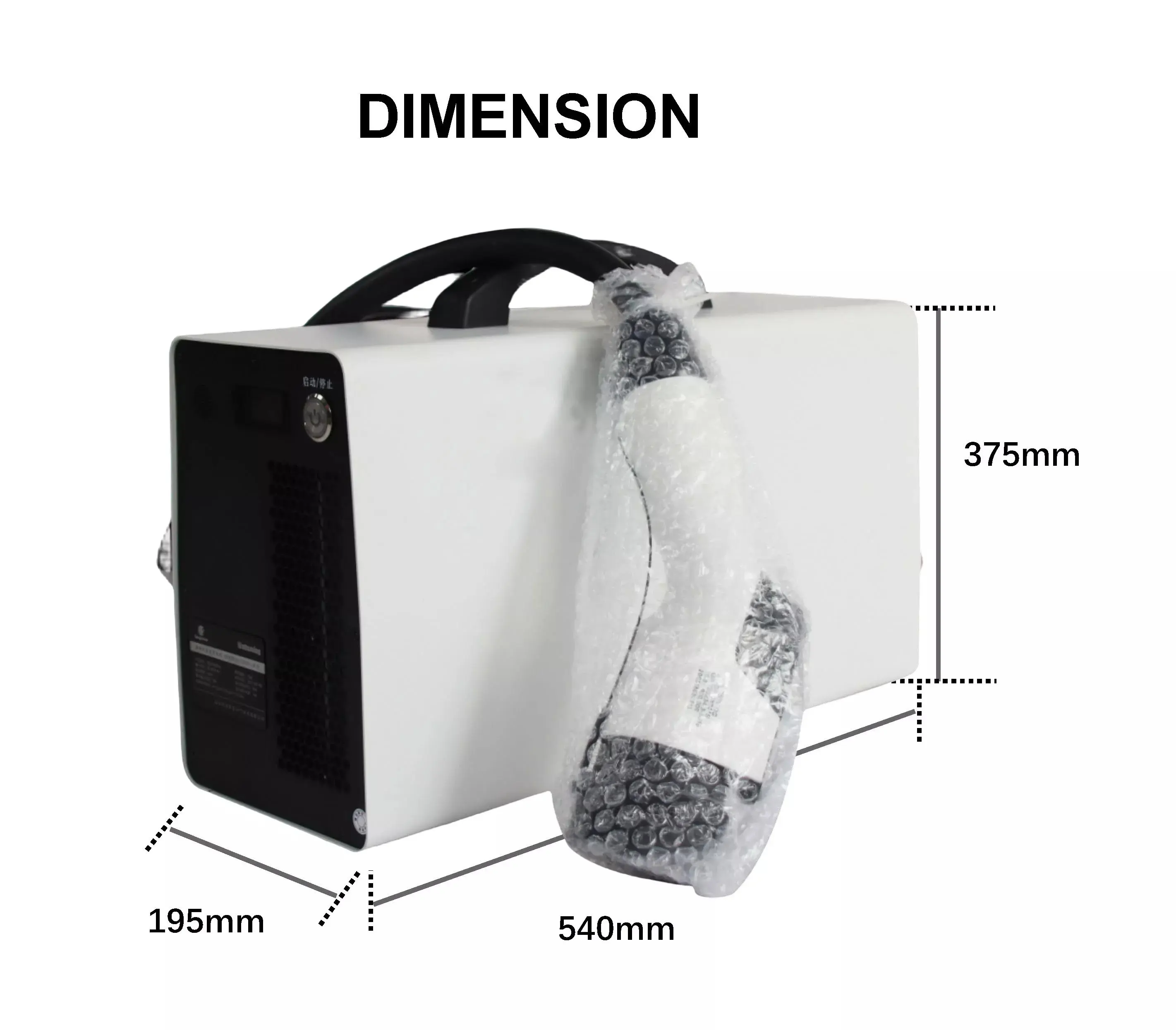

PackingDimension640x390x230mm
Weight68KG
EnvironmentalOperating Temperature-40~85℃,25°℃(TYPE)
Humidity5%-90% RH,non-condens,ng
Altitude 2000m
IP LevelIP44
MechanicalCable Length5M(CHAdeMO)5M(CCS),5M(GB/T)
Customized acceptable
RegulationEN61851-1
RegulationCertificationCE.ROHS
Charging protocolCHAdeMO20/DIN70121/
ISD1S118/EC618SI-23JEC618SI-24
