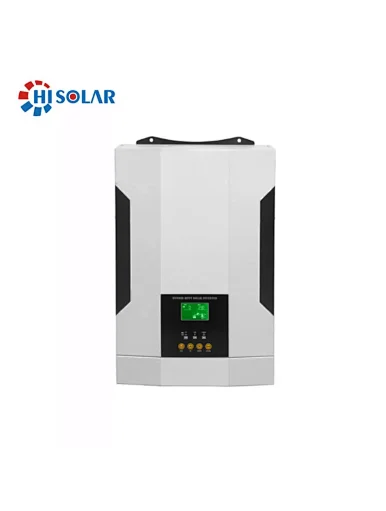

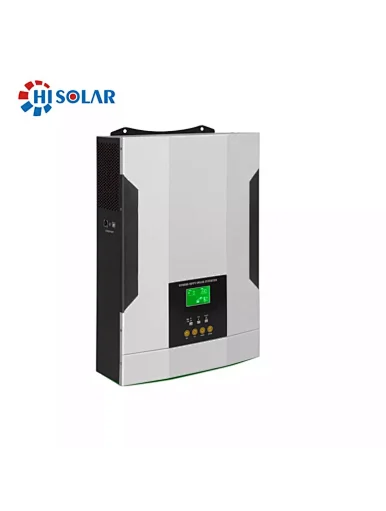

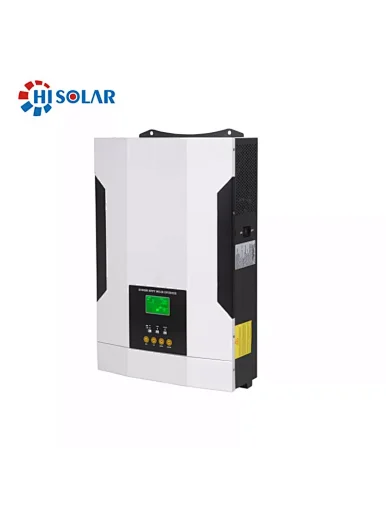

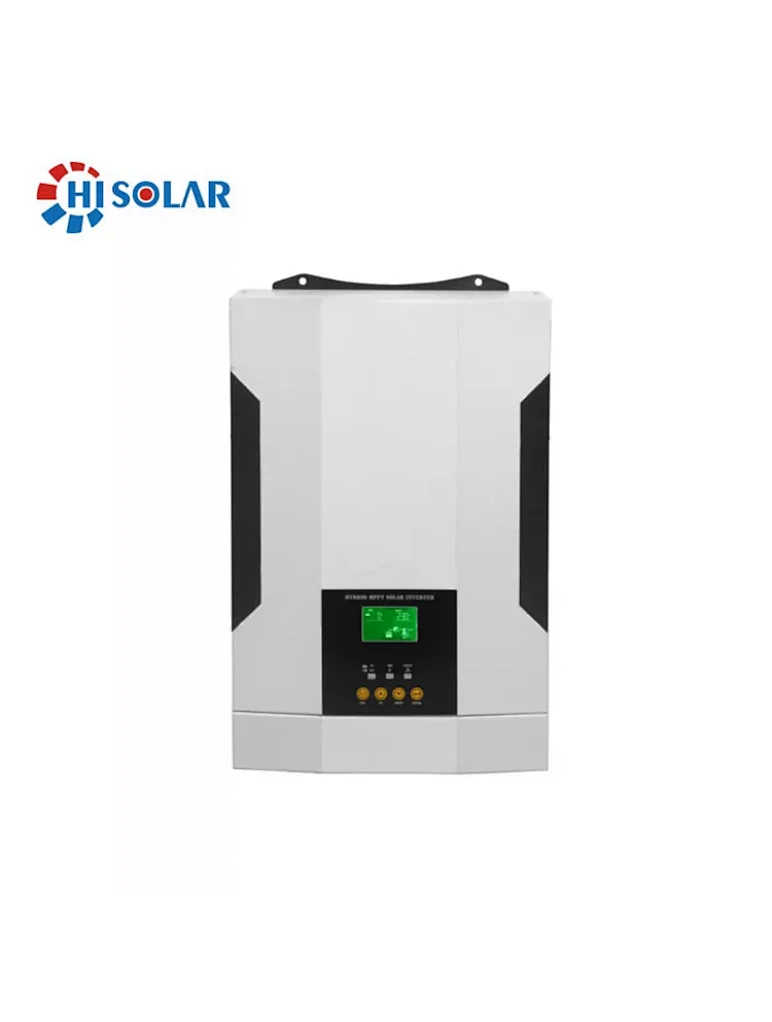

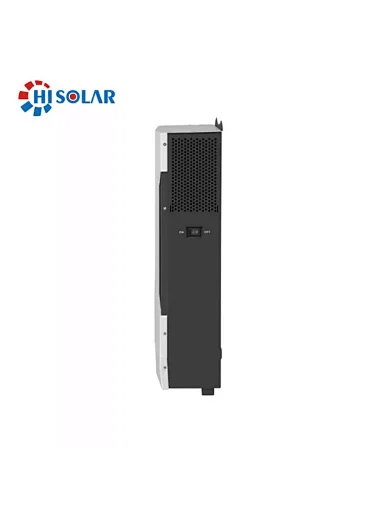

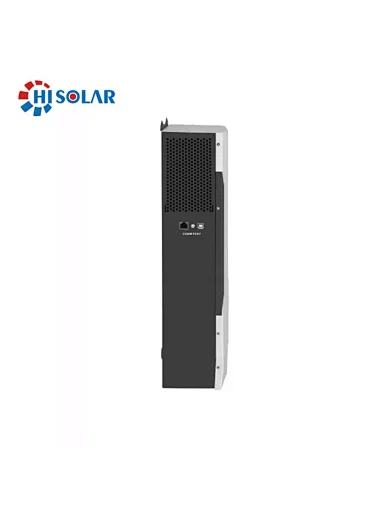

3.5KW 5.5KW 50HZ 60HZ Solar Hybrid Inverter

3.5KW 5.5KW 50HZ 60HZ Solar Hybrid Inverter
3.5KW 5.5KW 50HZ 60HZ Solar Hybrid Inverter
Quantity

Main Features

1. Pure Sine Wave MPPT Solar Inverter

2. With 100A MPPT Solar Charge Controller built-in

3. With Touch Button on the LCD display

4. Output Power Factor is 1.0

5. It can work with or without battery

6. With WIFI function optional

7. With high PV input voltage range(120-500VDC)

8. Smart battery charger and management for optimized battery performance

9. Cold Start function

10. Auto restart while AC is recovering

Model

 3.5K

 5.5K

The rated power

3500VA/3500W

5500VA/5500W

INPUT

Voltage

230VAC

Selectable Voltage Range

170-280VAC (UPS),90-280VAC (Appliances)

Frequency Range

50Hz/60Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Model)

230VAC ± 5%

Surge Power

7000VA

11000VA

Power factor

1.0

1.0

Efficiency(Peak)

>90%

Transfer Time

10ms (UPS), 20ms (Appliances)

Wave form

Pure sine wave

No load current

1.0A

1.1A

MPPT SOLAR CHARGER & AC CHARGER

Maximum PV Array Power

5000W

6000W

MPPT Range Operation Vol

120-450VDC

120-450VDC

Maximum PV Array Open Circuit Vol.

500VDC

500VDC

Number of MPPT trackers / Max output current

100A

100A

Maxmum AC Charge Current

60A

60A

Maxmum Charge Current

100A

100A

Maxmum Efficiency

98%

BEST PANEL CONFIGUTATION

Maximum PV Array Power

5000W

6000W

Best Panel configuration

300Wp*9pcs*36V(2700Wp)*2Parallel

330Wp*9pcs*36V(2970Wp)*2Parallel

PHYSICAL

Products Dimension, D*W*H(mm)

481mm*313mm*117mm

481mm*313mm*117mm

Packing size, D*W*H(mm)

543mm*394mm*204mm

543mm*394mm*204mm

Net Weight (kgs)

9.8Kg

10.5Kg

G.W. kg

11.2Kg

11.8Kg

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operation Temperature

0℃-50℃
