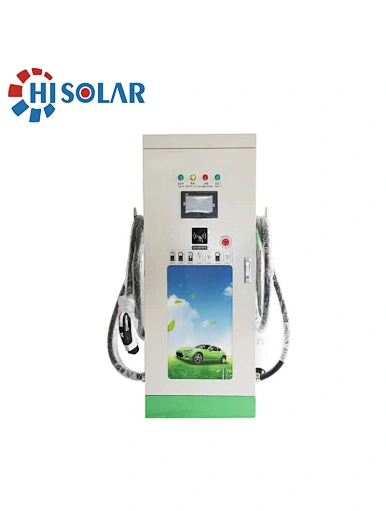

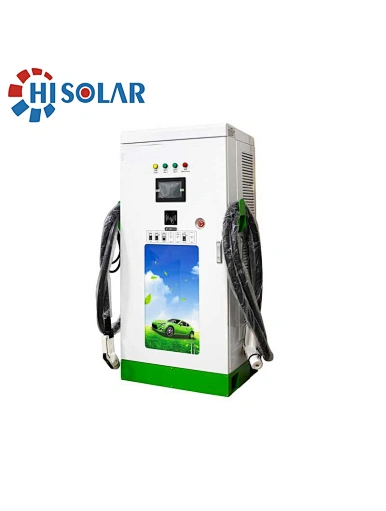

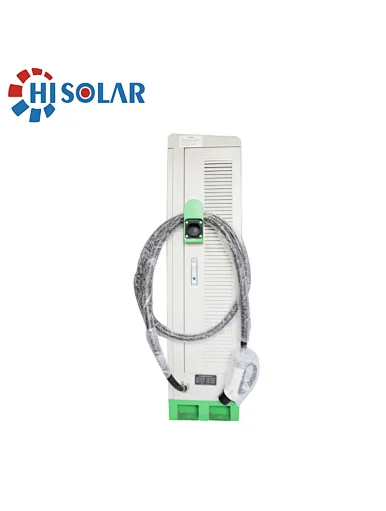

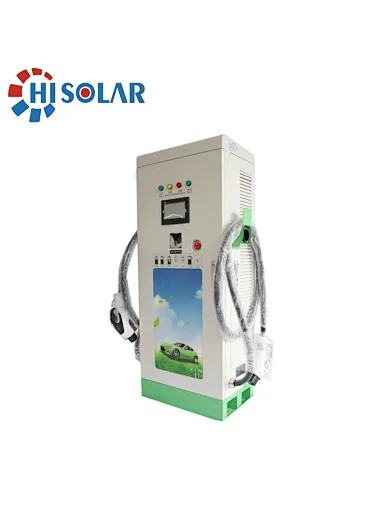

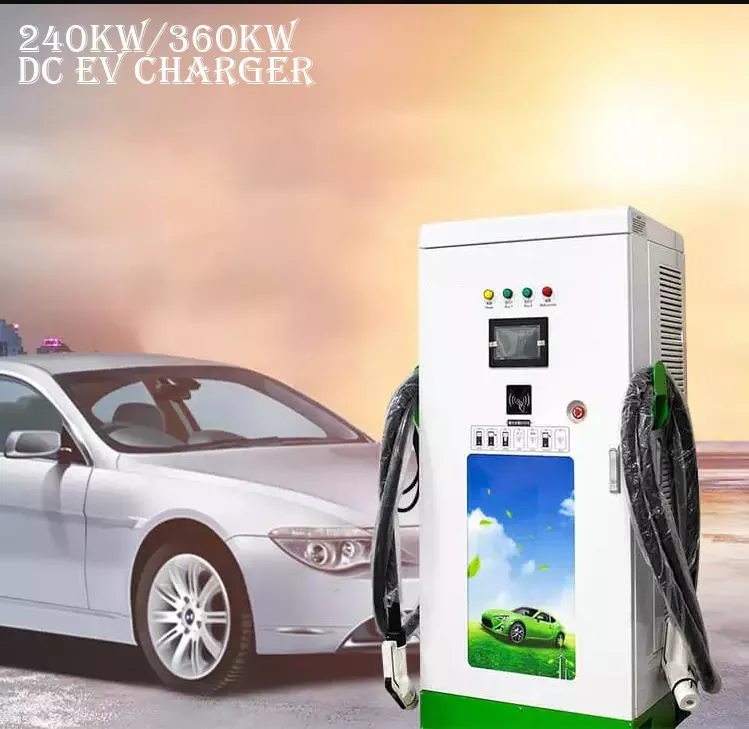

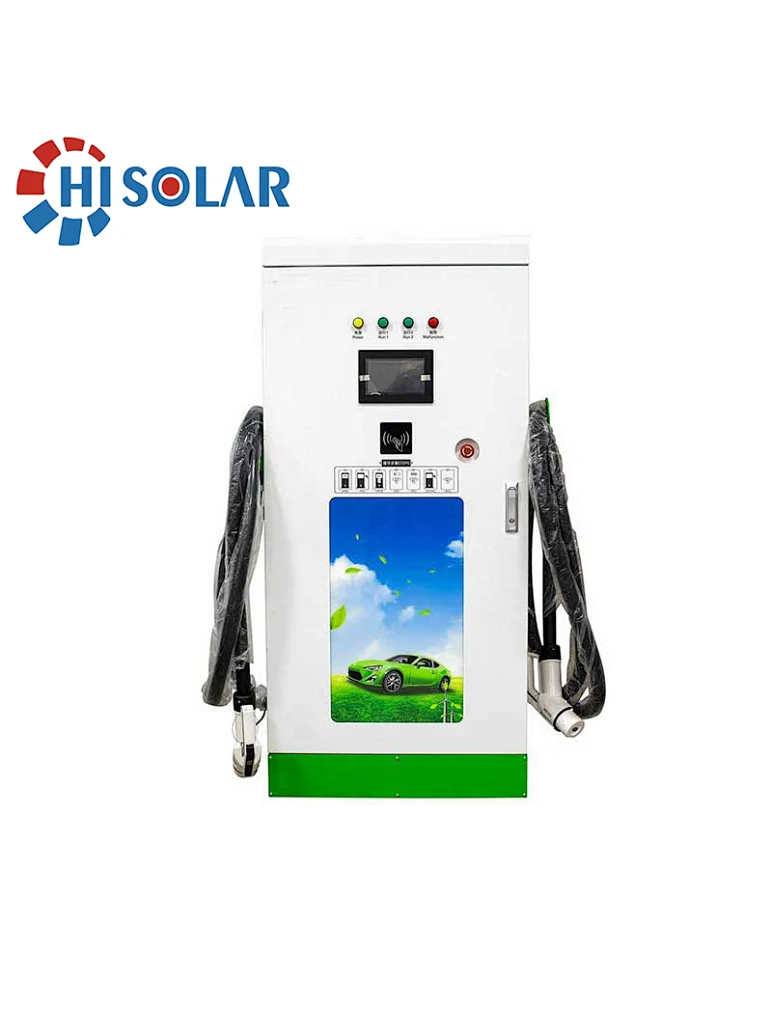

240kW 360kW commercial electric vehicle DC EV charging station
240kW 360kW commercial electric vehicle DC EV charging station
240kW 360kW commercial electric vehicle DC EV charging station
240kW 360kW commercial electric vehicle DC EV charging station
240kW 360kW commercial electric vehicle DC EV charging station
240kW 360kW commercial electric vehicle DC EV charging station
240kW 360kW commercial electric vehicle DC EV charging station
240kW 360kW commercial electric vehicle DC EV charging station
240kW 360kW commercial electric vehicle DC EV charging station
240kW 360kW commercial electric vehicle DC EV charging station
240kW 360kW commercial electric vehicle DC EV charging station

240kW 360kW commercial electric vehicle DC EV charging station

Model NO.
DC-240KW/360KW
Quantity:




Specification
Rated Power  240kW 360kW
Mounting Floor Mounting

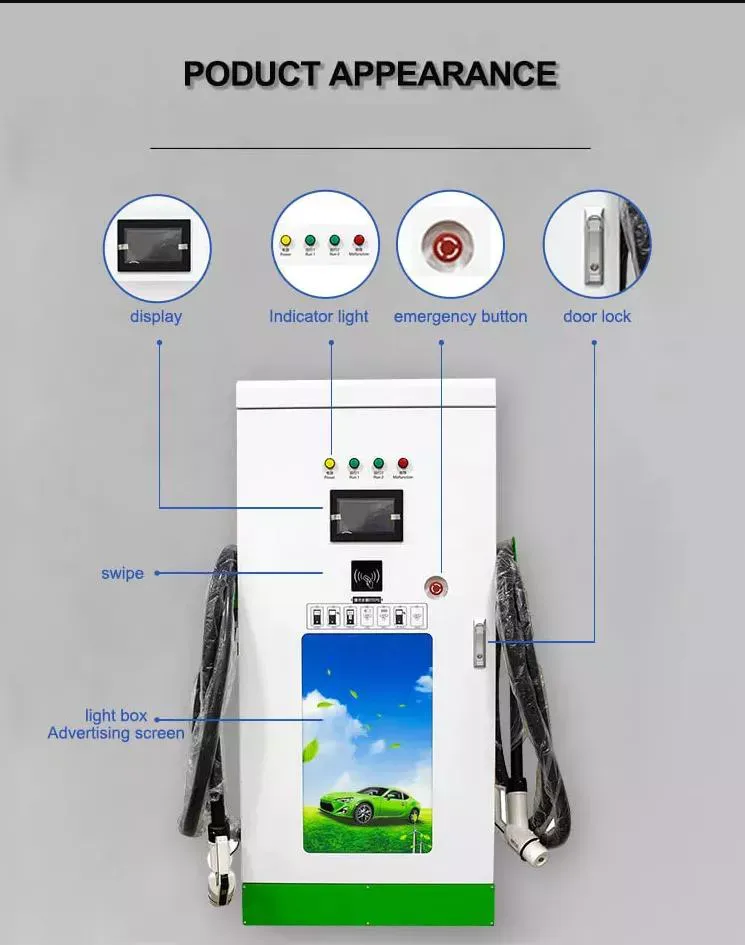

User Interface 7-inch Display screen
Dimension Dimension 720*557*1700
Input voltage  Input voltage AC380V±20%
Input frequency 45~65Hz
The output voltage 200V-750V 200-750V (constant power)
Certificate  CE TUV
Single gun output current range  0-320A 0-600A
Cable length  5M
Measurement accuracy  Level 0.5
Current limit protection value  ≥110%
Voltage requlation accuracy  ≤±0.5%
Steady flow accuracy  ≤±1%
Ripple coeffificient  ≤±0.5%
Effectiveness  ≥94.5%
Power factor  ≥0.99 (50% load or more
Harmonic content THD  ≤5% (50% load or more)
HMI7 inch LCD color display touch screen,LEDindicator
Charging mode Auto full / fifixed power/fifixed amount /fifixed time
payment methodCredit card payment/APP payment/scan code pavment
Communication Interface Ethemet 2/3/4G(optional)
security functionCharge qun temperature detectionovervoltage protection,
 undervoltage protectionoverload protectionshort circuit protection,
grounding protection,over temperature protection low temperature protection.
 insulation monitoring protection. polarity reverse connection protection.
lightning protection. emergency stop protectionleakage protection
Operating temperature -25℃~+50℃
Working humidity  5%~95% non-condensingcream
Working elevation <3000m

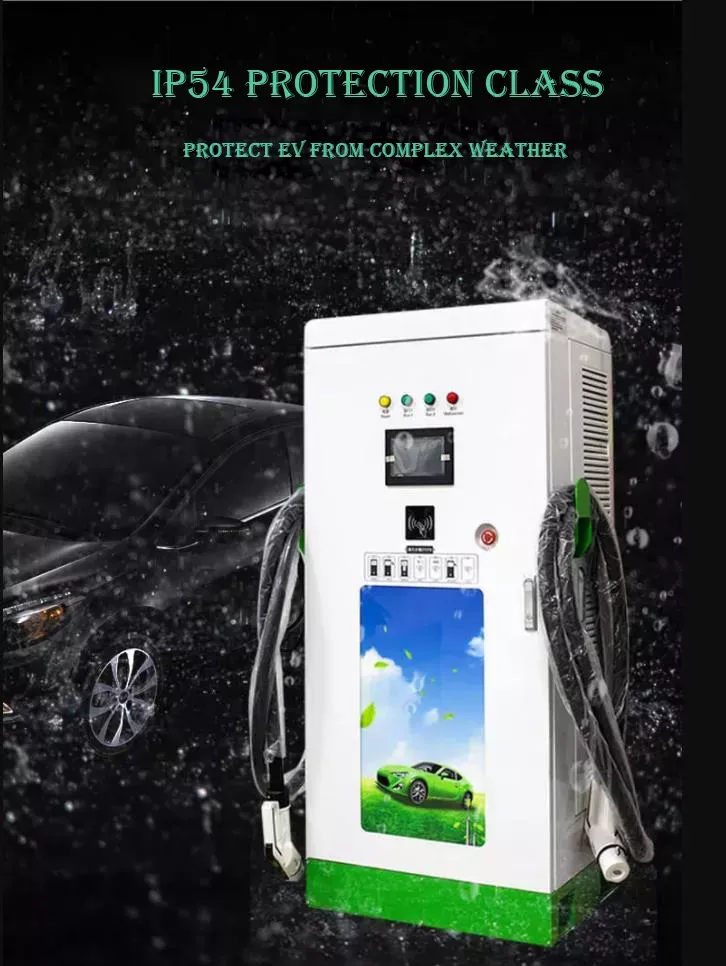

Protection level  IP54
cooling method  Forced air cooling
Noise control  ≤60dB
MTBF  100.000 hours
