Model NO.
230V 7KW AC EV Charger for street lighting pole
Quantity:

Brief introduction:

Plug and charge, charging is so simple.

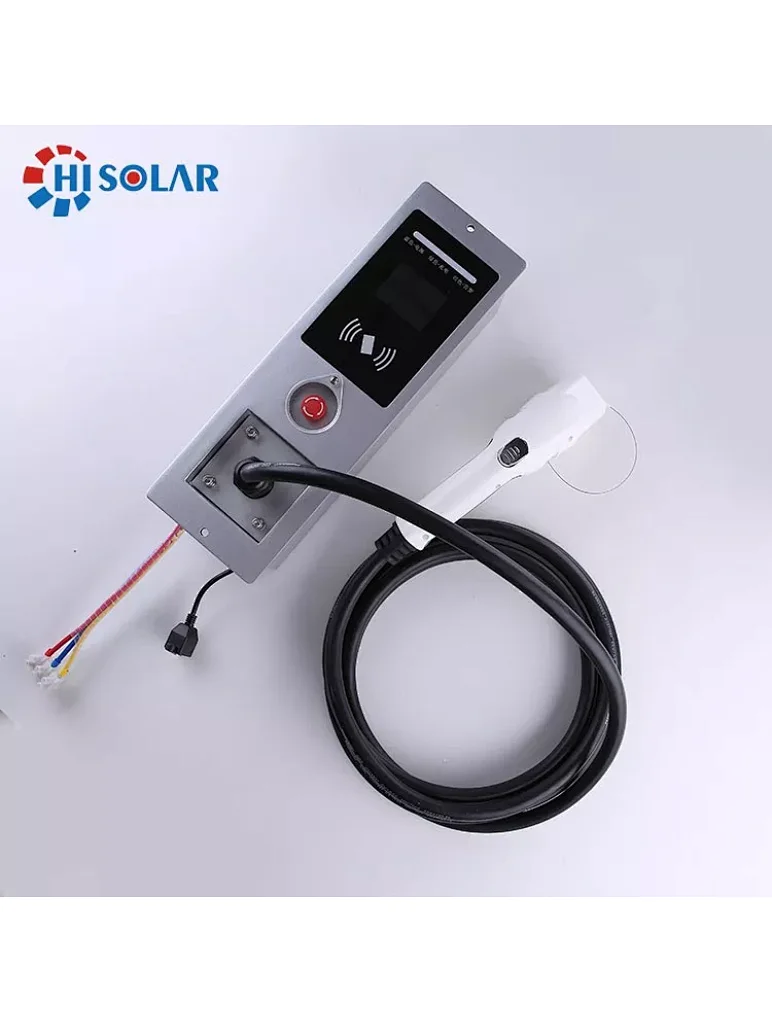

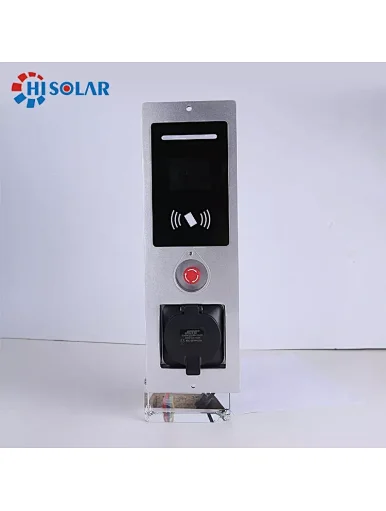

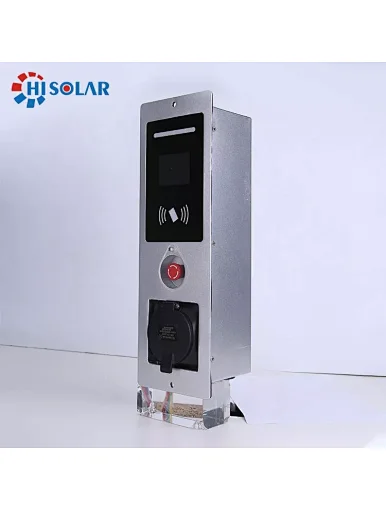

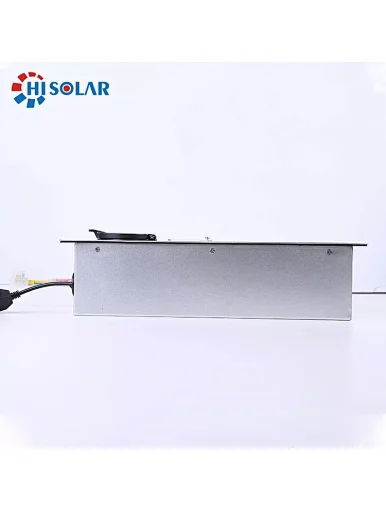

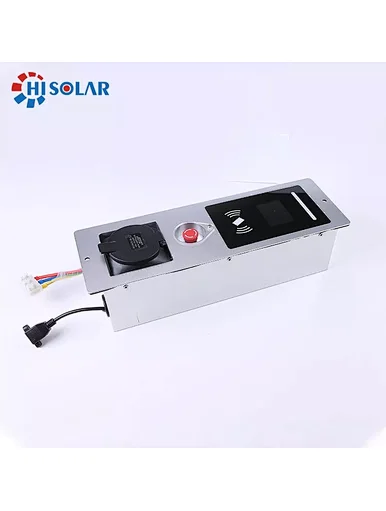

Smart Street Light EV Charging Pile is an AC electric vehicle charging pile specially developed for smart street lights in intelligent cities. The Smart street lamp EV charging pile adopts high-performance components from well-known international manufacturers, which integrates protection, control and self-inspection functions. The street lamp electric car charging pile is directly embedded in the street lamp pole, which is simple and exquisite, energy saving, intelligent, high protection level, and does not occupy extra space.

Electrical Protection: Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection

Specifications:

InputNumber of phase / wireL+N+PEL+N+PE
Rated Voltage230V AC230V AC
Rated Current16A32A
Frequency50/60Hz50/60Hz
OutputOutput Voltage230V AC230V AC
Maximum Current 16A32A
Rated Power3.6KW7.2KW
User InterfacePower Cord PlugSchuko
Charge ConnectorType 2 Plug/Socket
Cable Length4m
EnclosureMetal
LED IndicatorGreen/Yellow/Red
LCD DisplayYes
Start ModePlug&Play
CommunicationWIFIYes
EthernetYes
3G/4GYes
OCPPOCPP 1.6 JSON
SafetyIngress ProtectionIP65
Impact ProtectionIK10
CertificationCE
Certification StandardIEC 61851-1: 2017 , IEC 62196-2: 2016
Warranty2 years
EnvironmentWork Temperature-20°C ~ +50°C
Work Humidity5% - 95%
Work Altitude<2000m
PackageProduct Dimension400*130*100mm (H*W*D)
Package Dimension450*150*130mm (L*W*H)
Net weight4..0kg
Gross weight5.0kg
External PackageCarton
