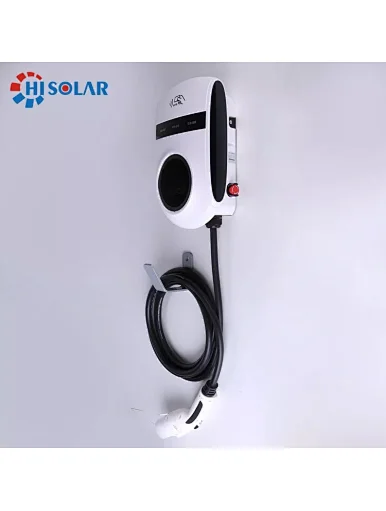

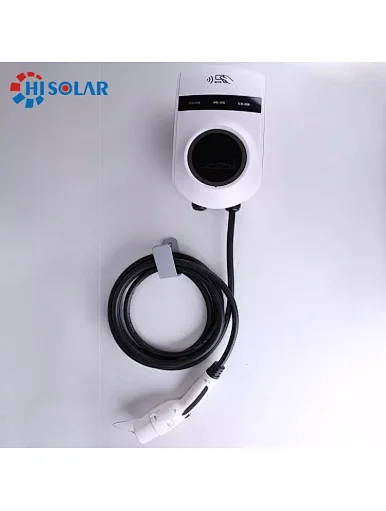

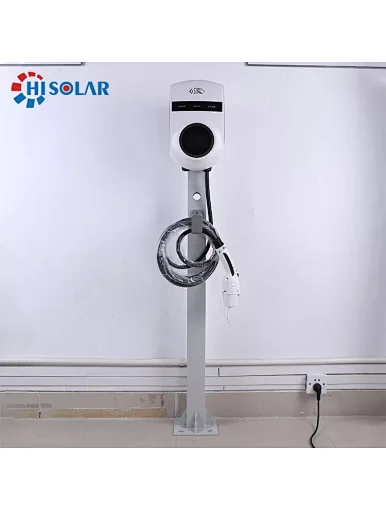

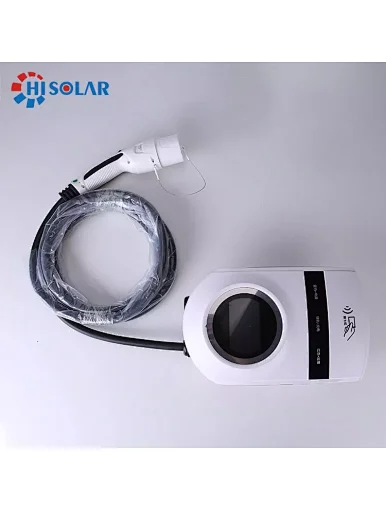

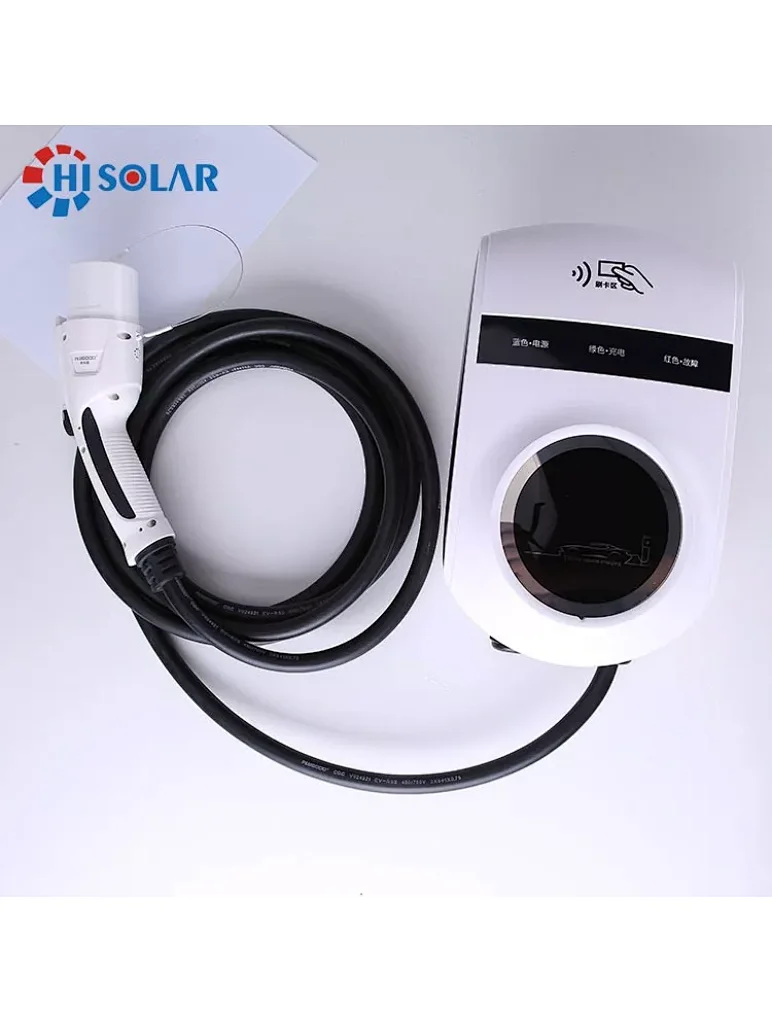

230V 7KW 1phase AC EV Charger
230V 7KW 1phase AC EV Charger
230V 7KW 1phase AC EV Charger
230V 7KW 1phase AC EV Charger
230V 7KW 1phase AC EV Charger
230V 7KW 1phase AC EV Charger
230V 7KW 1phase AC EV Charger
230V 7KW 1phase AC EV Charger
230V 7KW 1phase AC EV Charger
230V 7KW 1phase AC EV Charger
230V 7KW 1phase AC EV Charger

230V 7KW 1phase AC EV Charger

Model NO.
230V 7KW 1phase AC EV Charger
Quantity:

Brief introduction

Plug and charge, charging is so simple.

Home EV charger is specially designed for electric car owners to charge their car at home. This home electric vehicle charger is safe, simple and smart. When you get home, you only need to connect the gun, the home electric vehicle charger automatically starts charging, and it automatically stops charging when it is full, which can guarantee your Electric cars start every day with full power

Electrical Protection: Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection

Specifications

InputNumber of phase / wireL+N+PE
Rated Voltage230V AC
Rated Current32A
Frequency50/60Hz
OutputOutput Voltage230V AC
Maximum Current 32A
Rated Power7KW
User InterfacePower Cord PlugSchuko
Charge ConnectorType 2 cable
Cable Length5m
EnclosurePlastic PC940
LED IndicatorNo
LCD DisplayYes
Start ModePlug&Play
SafetyIngress ProtectionIP54
Impact ProtectionIK08
CertificationCE
Certification StandardIEC 61851-1: 2017 , IEC 62196-2: 2016
Warranty2 years
EnvironmentWork Temperature-20°C ~ +50°C
Work Humidity5% - 95%
Work Altitude<2000m
PackageProduct Dimension345*211*122mm (H*W*D)
Package Dimension380*280*160mm (L*W*H)
Net weight4.0kg
Gross weight5.0kg
External PackageCarton
