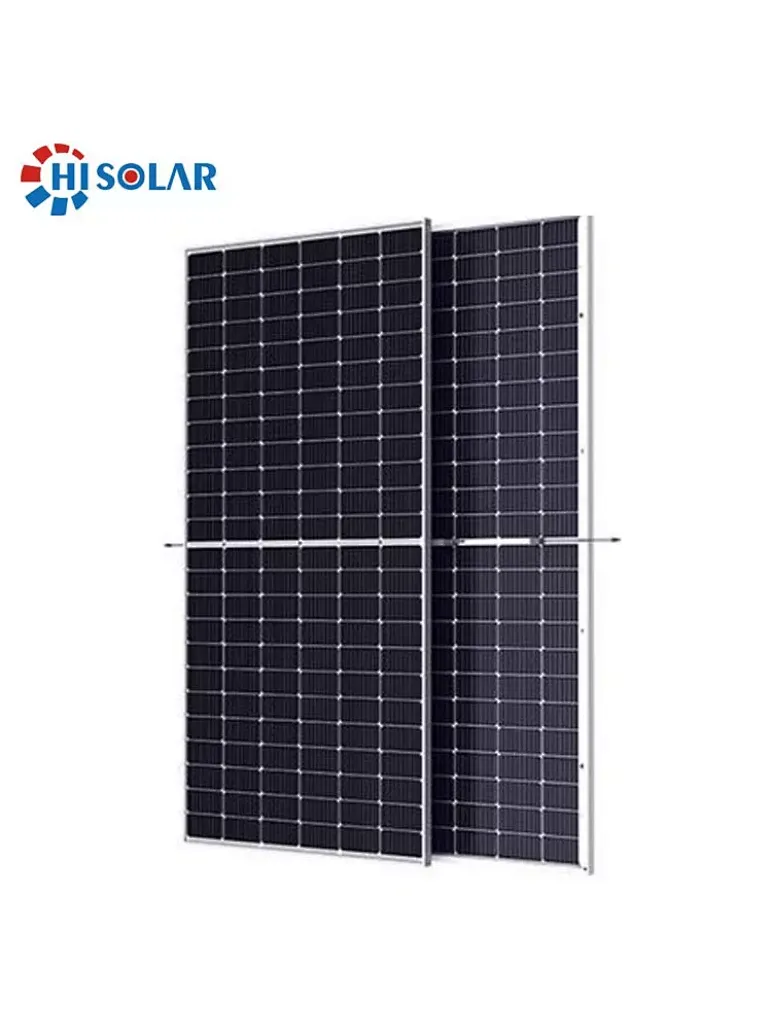

144Cells 530-550W Half-cell High Efficiency Monocrystalline Solar Module
144Cells 530-550W Half-cell High Efficiency Monocrystalline Solar Module

144Cells 530-550W Half-cell High Efficiency Monocrystalline Solar Module

Model NO.
144Cells 530-550W Half-cell High Efficiency Monocrystalline Solar Module
Quantity:

Key Specifications:

1)High output power: The use of high quality cell and half-cell PERC technology enables modules up to 550W

2) High Reliability: Products through a variety of harsh environmental testing

3) High transmissivity low-iron tempered glass, strong aluminium frame

4) Long lifespan, easy installation, high wind & hail impact resistance

5) 100% A grade solar cell with positive tolerance power range

6) Low voltage-temperature coefficient allows higher power output at high-temperature condition

7) Effectively reduces the effect of shadow on the module surface

8) Better Micro Crack Resistance: Minimize the impact by micro crack by limiting cell

damage and potentially extending area

9) Excellent Anti-PID Performance: 2 times of industry standard Anti-PID test by TUV

(85℃/85%RH,192h)

Electrical Performance

ELECTRICAL DATA(STC)
Model TypeJHM5/72GD530 STC/NMOHJHM5/72GD535 STC/NMOHJHM5/72GD 540 STC/NMOHJHM5/72GD545 STC/NMOHJHM5/72GD550 STC/NMOH
Peak Power(W)530 /392535/ 396540/ 400545/ 404550/408
Maximum Power Voltage(Vmp)  (V)41.4 /37.441.6/ 37.641.8 /37.742.0/37.842.2/ 38.0
Maximum Power Current(Imp)  (A)12.80 /10.4812.86/10.5512.92/ 10.6212.98 /10.6813.03 /10.75
Open Circuit Voltage(Voc)49.3/ 45.649.4 /45.749.5 /45.849.6/45.949.7 /46.0
Short Circuit Current(Isc)13.72 /11.1113.79/11.1613.86/11.2213.93/11.2814.00/ 11.33
Module Efficiency(﹪)20.45%20.65%20.84%21.23%
Operating Temperature-40°C~+85°C
Maximum System Voltage1500V
Maximum Series Fuse Rating25A
Protection ClassClass II
Power tolerance0~+5W
* STC:  irradiance 1000 W/m2, AM 1.5,Gand cell temperature of 25°C
TEMPERATURE CHARACTERISTICS
Temperature coefficient of Pmax-0.38%
Temperature coefficient of Voc-0.30%
Temperature coefficient of Isc                      0.06%
NMOT                     44±2°C
MECHANICAL CHARACTERISRTICS
Cell TypeMono-Crystalline
Cell Arrangement144pcs (2×(6×11))
Dimensions2285×1134×35mm
Weight31.6kg
Front Glass2.0mm+2.0mm Half Tempered Glass
FrameAnodized Aluminium Alloy
Junction boxIP68, 3 Bypass Diodes
Output cables4mm²/300mm
ConnectorStaubli EVO2 or MC4 Compatible
Snow/Wind Load5400Pa/2400Pa
