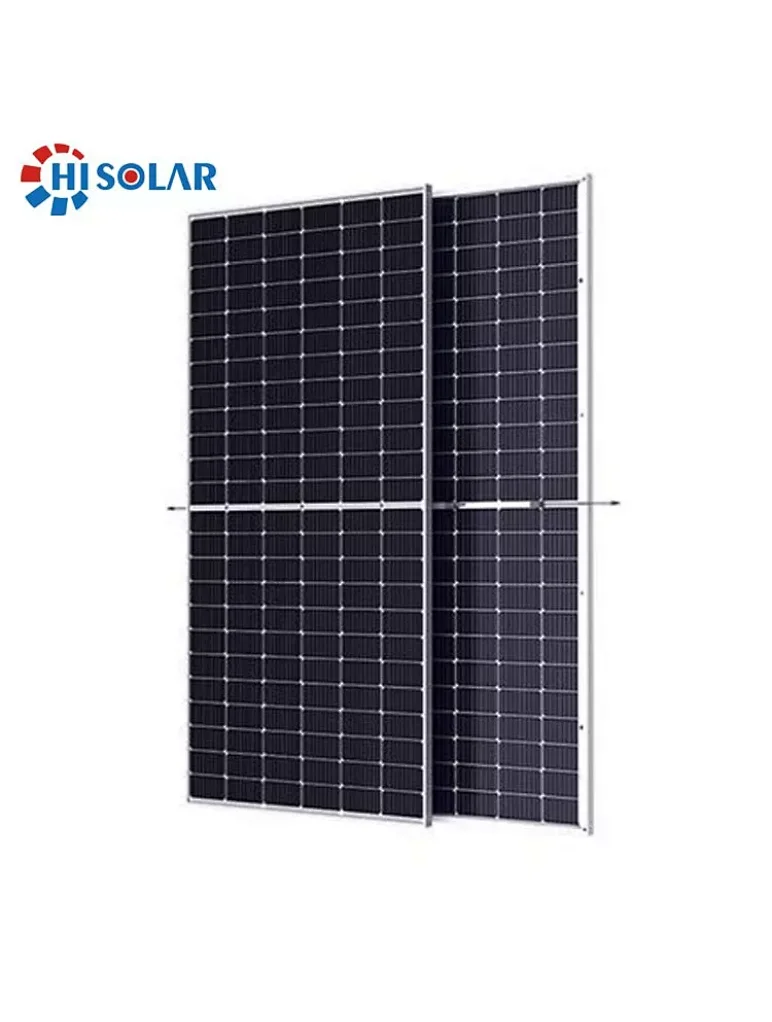

144 Cells Half-cell High Efficiency Monocrystalline Solar Module
144 Cells Half-cell High Efficiency Monocrystalline Solar Module

144 Cells Half-cell High Efficiency Monocrystalline Solar Module

Model NO.
144 Cells Half-cell High Efficiency Monocrystalline Solar Module
Quantity:

Key Specifications:

1)High output power: The use of high quality cell and half-cell PERC technology enables modules up to 455W

2) High Reliability: Products through a variety of harsh environmental testing

3) High transmissivity low-iron tempered glass, strong aluminium frame

4) Long lifespan, easy installation, high wind & hail impact resistance

5) 100% A grade solar cell with positive tolerance power range

6) Low voltage-temperature coefficient allows higher power output at high-temperature condition

7) Effectively reduces the effect of shadow on the module surface

8) Better Micro Crack Resistance: Minimize the impact by micro crack by limiting cell

damage and potentially extending area

9) Excellent Anti-PID Performance: 2 times of industry standard Anti-PID test by TUV

(85℃/85%RH,192h)

Electrical Performance

ELECTRICAL DATA(STC)
Model TypeJHM4/72BH425 STC/NMOHJHM4/72BH 430 STC/NMOHJHM4/72BH 435 STC/NMOHJHM4/72BH 440 STC/NMOHJHM4/72BH 445 STC/NMOH
Peak Power(W)425 /319430/ 322435/ 326440/ 330445 /334
Maximum Power Voltage(Vmp)  (V)39.9/37.240.2/ 37.540.5 /37.740.8 /38.041.1/ 38.3
Maximum Power Current(Imp)  (A)10.65 /8.5710.70/8.6010.74/ 8.6410.78 /8.6710.83 /8.71
Open Circuit Voltage(Voc)48.2/ 45.748.4 /45.848.7/46.148.9/46.349.2 /46.6
Short Circuit Current(Isc)11.12/8.9911.18 /9.0411.24/ 9.0811.30/9.1311.36/ 9.18
Module Efficiency(﹪)19.24%19.46%19.63%19.92%20.14%
Operating Temperature-40°C~+85°C
Maximum System Voltage1500V
Maximum Series Fuse Rating20A
Protection ClassClass II
Power tolerance0~+5W
* STC:  irradiance 1000 W/m2, AM 1.5,Gand cell temperature of 25°C
TEMPERATURE CHARACTERISTICS
Temperature coefficient of Pmax-0.38%
Temperature coefficient of Voc-0.30%
Temperature coefficient of Isc                      0.06%
NMOT                     44±2°C
MECHANICAL CHARACTERISRTICS
Cell TypeMono-Crystalline
Cell Arrangement144pcs (2×(6×11))
Dimensions2108×1048×35mm
Weight24.5kg
Front Glass3.2mm Tempered Glass
FrameAnodized Aluminium Alloy
Junction boxIP68, 3 Bypass Diodes
Output cables4mm²/300mm
ConnectorStaubli EVO2 or MC4 Compatible
Snow/Wind Load5400Pa/2400Pa
