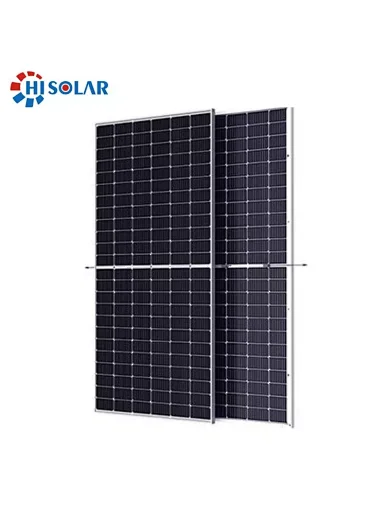

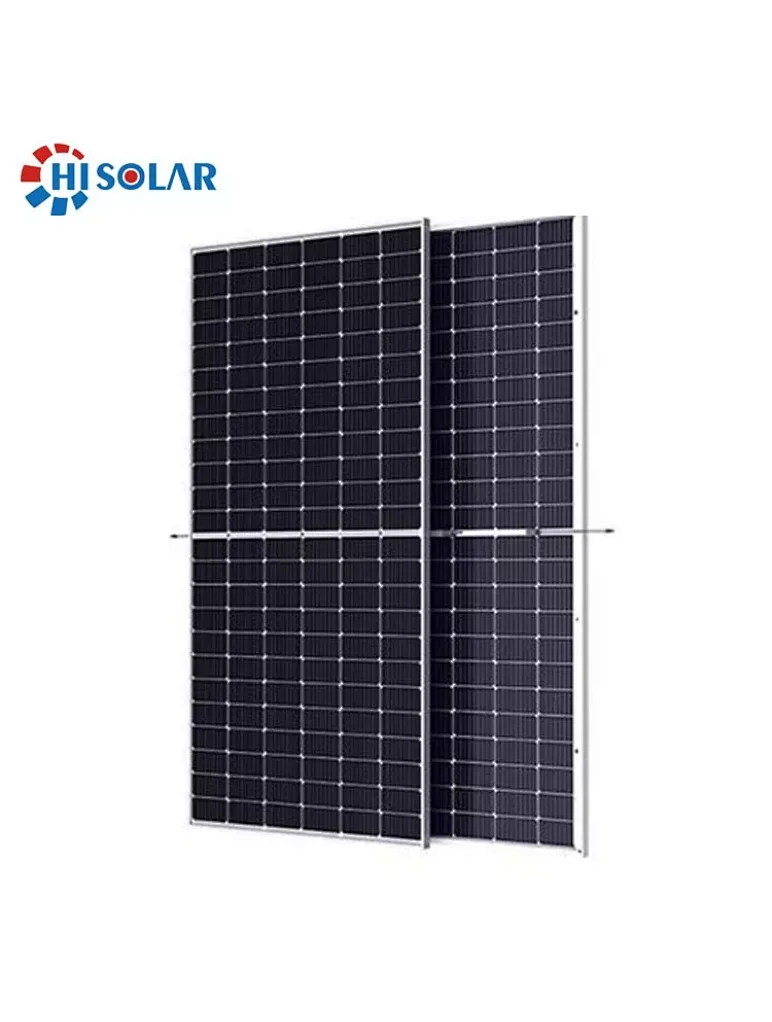

144 Cells 440-465W Half-cell High Efficiency Monocrystalline Solar Module
144 Cells 440-465W Half-cell High Efficiency Monocrystalline Solar Module

144 Cells 440-465W Half-cell High Efficiency Monocrystalline Solar Module

Model NO.
144 Cells 440-465W Half-cell High Efficiency Monocrystalline Solar Module
Quantity:

Key Specifications:

1)High output power: The use of high quality cell and half-cell PERC technology enables modules up to 465W

2) High Reliability: Products through a variety of harsh environmental testing

3) High transmissivity low-iron tempered glass, strong aluminium frame

4) Long lifespan, easy installation, high wind & hail impact resistance

5) 100% A grade solar cell with positive tolerance power range

6) Low voltage-temperature coefficient allows higher power output at high-temperature condition

7) Effectively reduces the effect of shadow on the module surface

8) Better Micro Crack Resistance: Minimize the impact by micro crack by limiting cell

damage and potentially extending area

9) Excellent Anti-PID Performance: 2 times of industry standard Anti-PID test by TUV

(85℃/85%RH,192h)

Electrical Performance

ELECTRICAL DATA(STC)
Model TypeJHM4/72H440 STC/NMOHJHM4/72H445 STC/NMOHJHM4/72H450 STC/NMOHJHM4/72H455 STC/NMOHJHM4/72H460 STC/NMOHJHM4/72H465 STC/NMOT
Peak Power(W)440 /330445/ 334450/ 337455/ 341460/345465/349
Maximum Power Voltage(Vmp)  (V)40.8/38.041.1/ 38.341.4 /38.641.7 /38.942.0/ 39.242.3/39.5
Maximum Power Current(Imp)  (A)10.78/8.6710.83/8.71 10.87/ 8.7410.91 /8.7810.95 /8.8010.99/8.84
Open Circuit Voltage(Voc)48.9// 46.349.2/46.649.5/46.949.7/47.149.9/47.450.1/47.7
Short Circuit Current(Isc)11.30/9.1311.36/9.1811.42/9.2311.48/9.2811.53/9.3311.58/9.38
Module Efficiency(﹪)19.92%20.14%20.37%20.60%20.82%21.05%
Operating Temperature-40°C~+85°C
Maximum System Voltage1500V
Maximum Series Fuse Rating20A
Protection ClassClass Ii
Power tolerance0~+5W
* STC:  irradiance 1000 W/m2, AM 1.5,Gand cell temperature of 25°C
TEMPERATURE CHARACTERISTICS
Temperature coefficient of Pmax-0.38%
Temperature coefficient of Voc-0.30%
Temperature coefficient of Isc                           0.06%
NMOT                           44±2°C
MECHANICAL CHARACTERISRTICS
Cell TypeMono-Crystalline
Cell Arrangement144pcs (2×(6×11))
Dimensions2108×1048×35mm
Weight24.5kg
Front Glass3.2mm Tempered Glass
FrameAnodized Aluminium Alloy
Junction boxIP68, 3 Bypass Diodes
Output cables4mm²/300mm
ConnectorStaubli EVO2 or MC4 Compatible
Snow/Wind Load5400Pa/2400Pa
