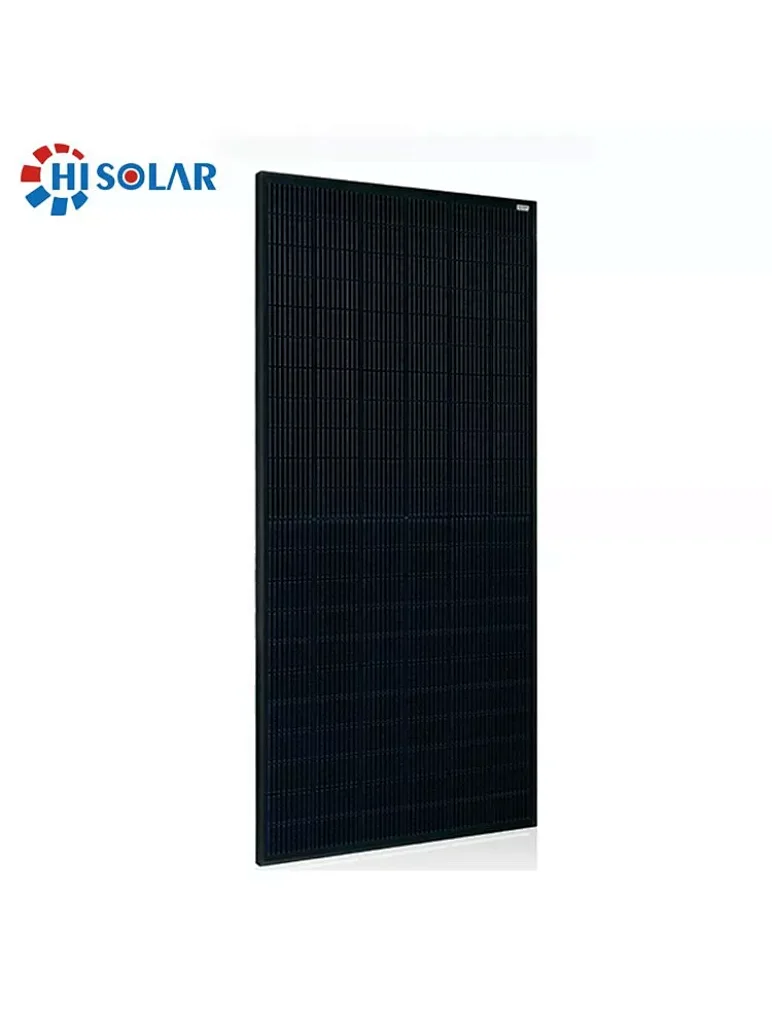

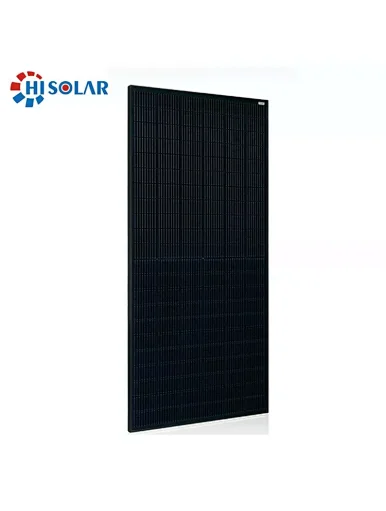

132 Cells Half-cell High Efficiency Monocrystalline Solar Module
132 Cells Half-cell High Efficiency Monocrystalline Solar Module

132 Cells Half-cell High Efficiency Monocrystalline Solar Module

Model NO.
132 Cells Half-cell High Efficiency Monocrystalline Solar Module
Quantity:

Key Specifications:

1)High output power: The use of high quality cell and half-cell PERC technology enables modules up to 655W

2) High Reliability: Products through a variety of harsh environmental testing

3) High transmissivity low-iron tempered glass, strong aluminium frame

4) Long lifespan, easy installation, high wind & hail impact resistance

5) 100% A grade solar cell with positive tolerance power range

6) Low voltage-temperature coefficient allows higher power output at high-temperature condition

7) Effectively reduces the effect of shadow on the module surface

8) Better Micro Crack Resistance: Minimize the impact by micro crack by limiting cell

damage and potentially extending area

9) Excellent Anti-PID Performance: 2 times of industry standard Anti-PID test by TUV

(85℃/85%RH,192h)

Electrical Performance

ELECTRICAL DATA(STC)
Model TypeIH7/66BH635 STC/NMOHIH7/66BH640 STC/NMOHIH7/66BH645 STC/NMOHIH7/66BH650 STC/NMOHIH7/66BH655 STC/NMOH
Peak Power(W)635 /472640/ 476645/ 480650/ 484655 /488
Maximum Power Voltage(Vmp)  (V)37.3 /33.737.5/ 33.937.7 /34.137.9 /34.338.1/ 34.4
Maximum Power Current(Imp)  (A)17.03 /14.0117.07 /14.0517.11/ 14.0917.16 /14.1317.20 /14.17
Open Circuit Voltage(Voc)44.4/ 41.144.6 /41.344.8 /41.545.0 /41.745.2 /41.8
Short Circuit Current(Isc)18.27 /14.7918.31 /14.8218.35 14.8618.39 /14.8918.43/ 14.92
Module Efficiency(﹪)20.44%20.60%20.76%20.92%21.09%
Operating Temperature-40°C~+85°C
Maximum System Voltage1500V
Maximum Series Fuse Rating30A
Protection ClassIP65
Power tolerance0~+5W
* STC:  irradiance 1000 W/m2, AM 1.5,Gand cell temperature of 25°C
TEMPERATURE CHARACTERISTICS
Temperature coefficient of Pmax-0.38%
Temperature coefficient of Voc-0.30%
Temperature coefficient of Isc                      0.06%
NMOT                     44±2°C
MECHANICAL CHARACTERISRTICS
Cell TypeMono-Crystalline
Cell Arrangement132pcs (2×(6×11))
Dimensions2384×1303×35mm
Weight35.5kg
Front Glass3.2mm Tempered Glass
FrameAnodized Aluminium Alloy
Junction boxIP68, 3 Bypass Diodes
Output cables4mm²/300mm
ConnectorStaubli EVO2 or MC4 Compatible
Snow/Wind Load5400Pa/2400Pa
