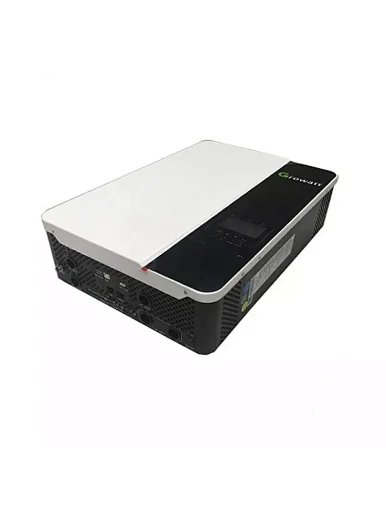

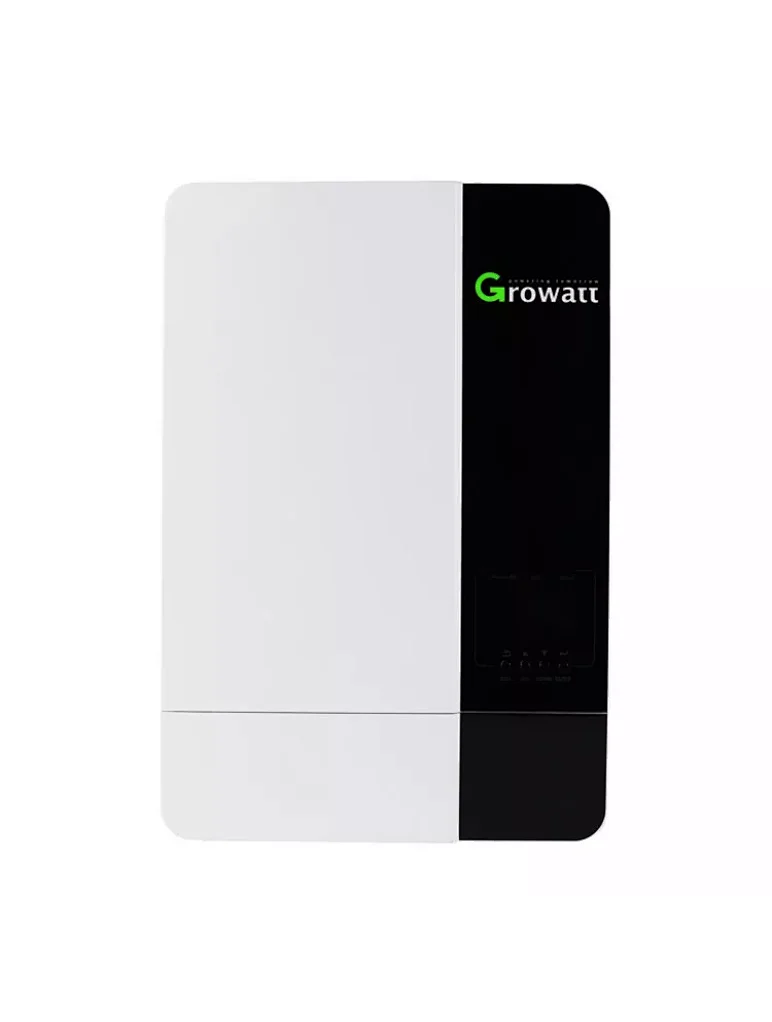

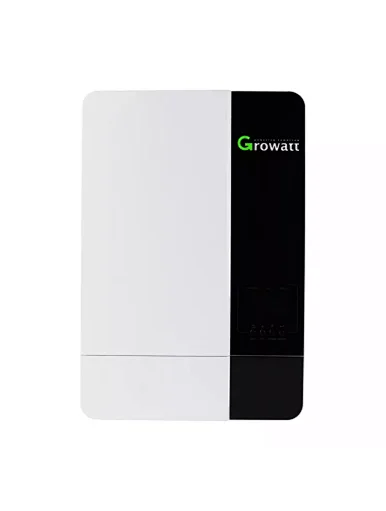

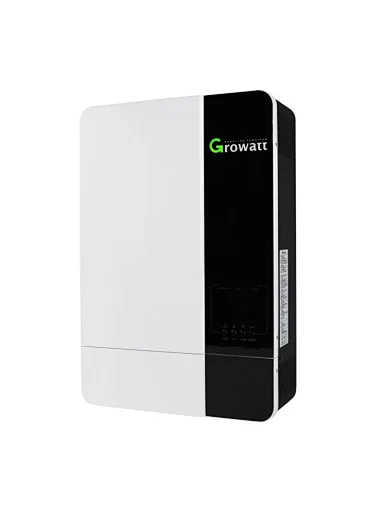

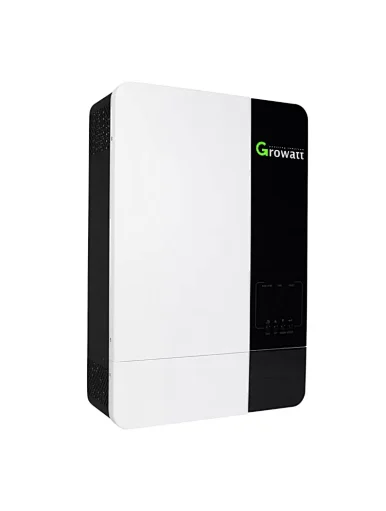

Growatt 5kw Wifi Monitor Off Grid Hybrid Solar Inverter
Growatt 5kw Wifi Monitor Off Grid Hybrid Solar Inverter
1
Quantity
| SPF5000ES | |
| Battery voltage | 48VDC |
| INVERTER OUTPUT | |
| RATED POWER | 5000VA/ 5000W |

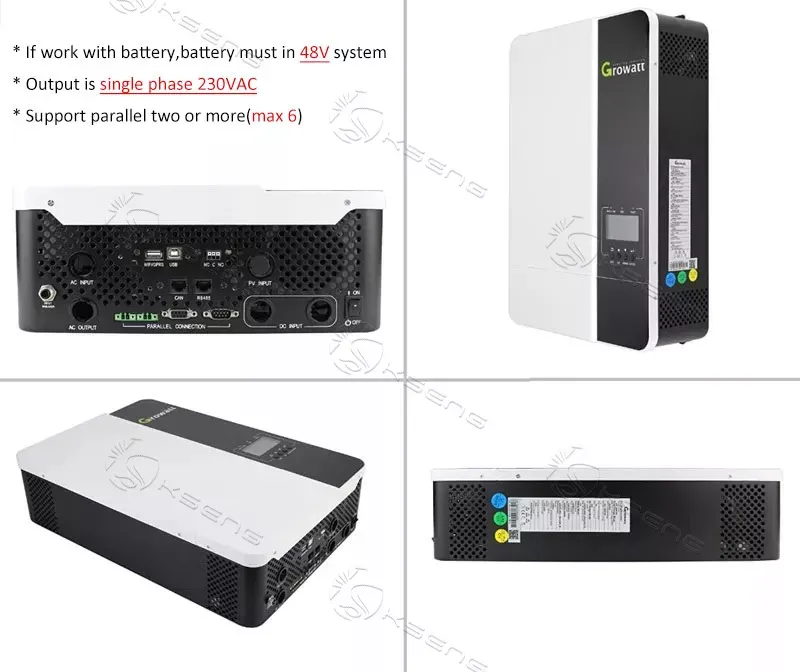

| Parallel Capability | Yes, 6 units |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz |
| Surge Power | 10000VA |
| Efficiency (Peak) | 93% |
| Waveform | Pure sine wave |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| SOLAR CHARGER | |
| Maximum PV Array Power | 5500W |
| MPPT Range @ Operating Voltage | 120VDC ~ 430VDC |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| Maximum Solar Charge Current | 100A |
| Maximum Efficiency | 97% |
| AC CHARGER | |
| Charge Current | 80A |
| AC Input Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
| PHYSICAL | |
| Dimension (D/W/H) in mm | 485/330/135 |
| Net Weight (kgs) | 12 |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 0°C - 55°C |
| Storage Temperature | -15°C - 60°C |
