Products Description
Detailed Pictures
Compared with Hailong battery, What does Jumbo Shark battery improve ?
1. Remove controller house at tail, release space for more cells. Battery house has enough space for 70 cells, 40A BMS and cells rack;

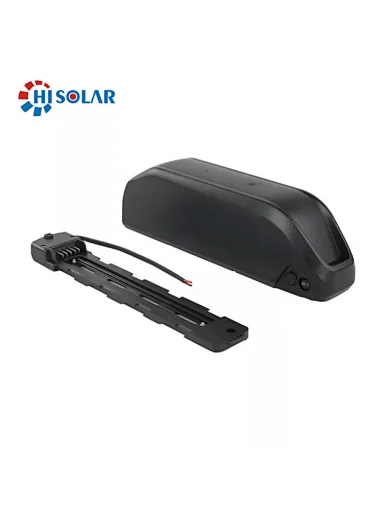

2. Jumbo Shark has a metal support, fixing points are in almost length, It is ok to install in standard bottle mounts of most bikes;

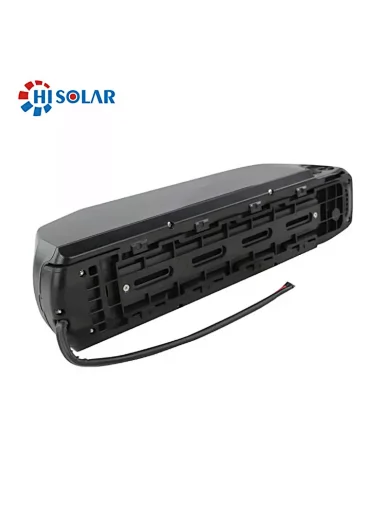

3. The tabs on the base of the Jumbo Shark case are 5mm thick and well supported. There are 8 of these stronger tabs and they are more evenly spaced along the entire length of the battery.
4. Higher quality of case. Thickness of case is about 3.3 mm or more, and there are many supports in the housing to increase stability and strength.
5.We use Scratch resistant material for outer casing;
Product Description
1. Technical Data | |
Model No. | UPP-R049-2 |
Rated Voltage | 48V or 52V |
Rated Capacity | 17.5Ah |
Cells | 3500mah 18650 35E Cells |
BMS | 40A for 1500W |
Combination | 5P14S |
Discharge Cut-Off Voltage | 36.4V/39V |
Charge Cut-Off Voltage | 54.6V/58.8V |
Max Charge Current | 2A |
Cycle Life | 80% power after 800-1000 cycles |
Application | 1500W Electric Pedelec e Bike |
2. Basic Data | |
Size | 370*110*90mm |
Battery Material | Li(NiCoMn)O2 18650 |
Case Material | High Hardness Plastic |
Warranty | 12 - 24 months, offer local repair in US and Germany |
Charging Temprature | 0 ~ 45 Celsius |
Discharging Temprature | -20 ~ 60 Celsius |
3. Packing List | |
48V/52V 17.5Ah Lithium ion Battery * 1PC | |
54.6V/58.8V 2A Charger with EU/US/UK/AU plug * 1PC | |
Install Mount * 1PC | |
4. Other Available Capacity | |
48v/52V 16Ah By NCR-BD cells polly battery in the USA | |
