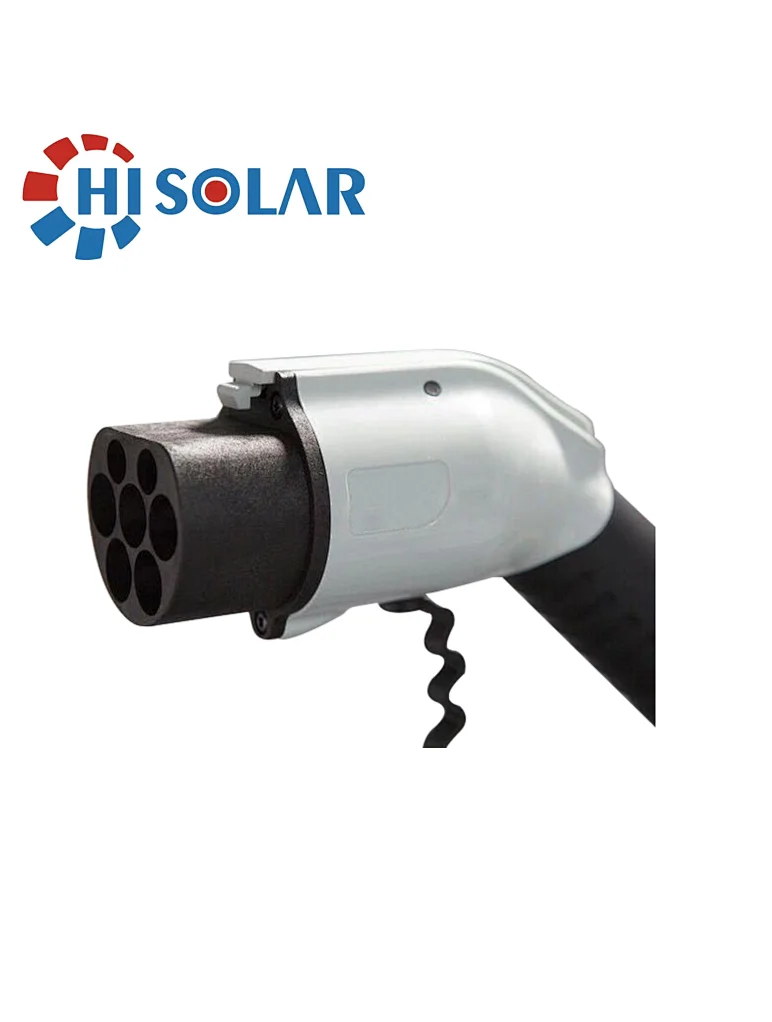

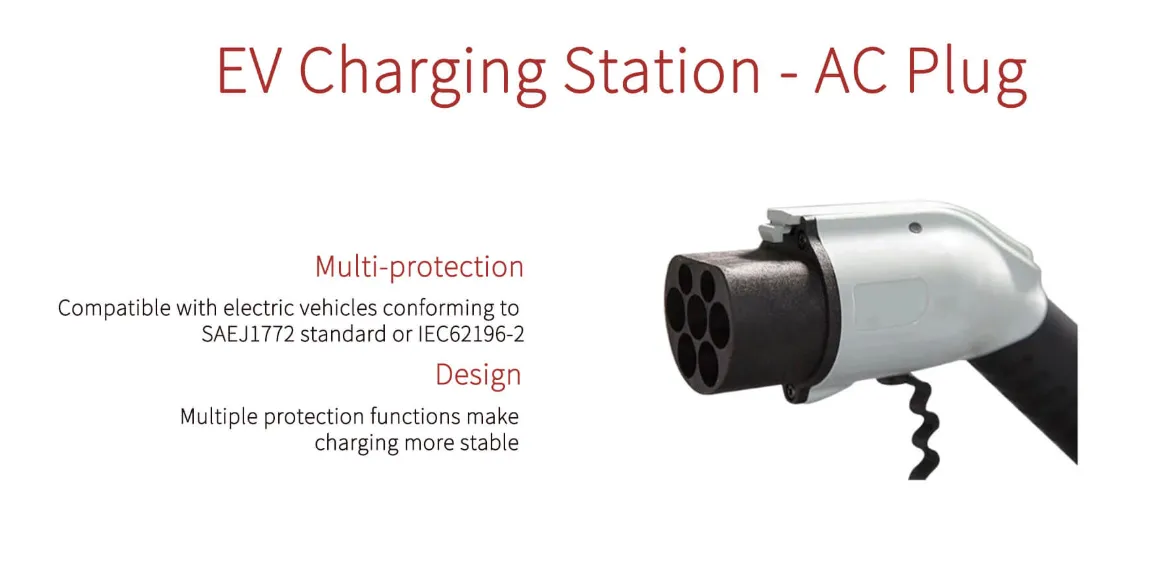

Ev Charging Station - AC Plug
16A/32A
1

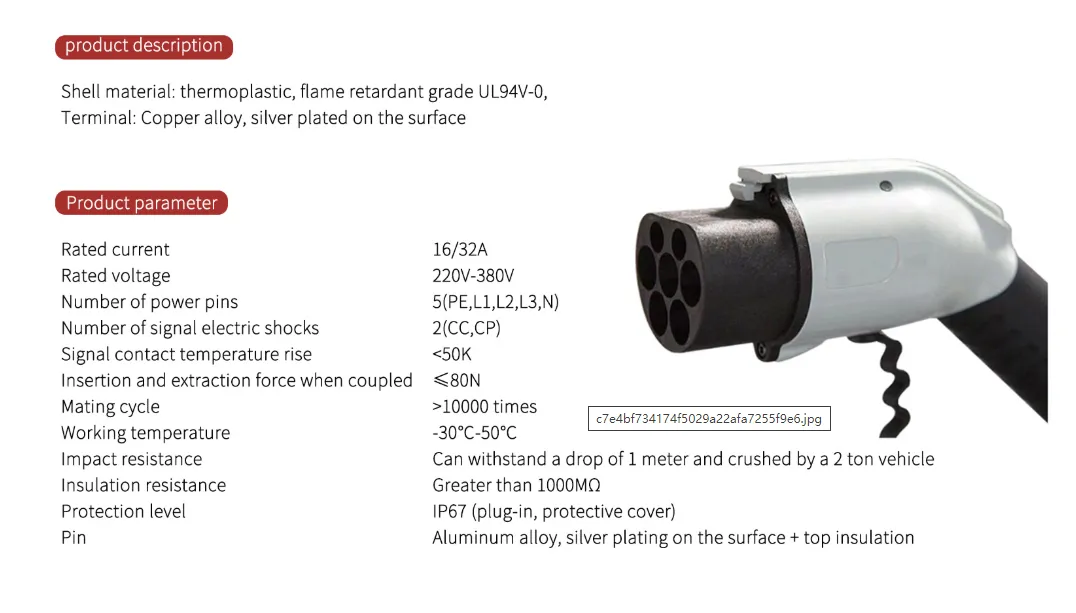

Shell material: thermoplastic, flame retardant grade UL94V-o,Terminal: Copper alloy, silver plated on the surface。
Quantity
| PRODUCT SPECIFICATIONS | |
| Input Rating | |
| Input Voltage | AC220V+20% |
| Input Frequency | 50+10%Hz |
| Output Vltage | AC220V+20% |
| Max output current | 16A |
| User Interface | Touch Screen |
| Installation | Wall-mounted/ Column Type |
| Way of Routing | Down |
| Cable Length | 5m |
| Electrical Index | |
| Measurement Accuracy | Level 0.5. |
| Electrical Index | ≥11 |
| Current limit protection value | ≥110% |
| Features | |
| Charging Mode | Auto full/ fixed power fixed amount fixed time |
| Payment Method | RFID/ scan code |
| security funetion | Over Under voltage protection, Over Under frequency protection, Over Undertemperature protection Over current protectin, Current leakage protection, Grounding protection |
| Environmental Indicators | |
| Operating temperature | -25*C~+50*c |
| Working humidity | 5%-95% non-condensing cream |
| Working elevation | <2000m |
| Protection level | Level IP55 |
| Cooling method | Forced air cooling |
| Noise control | ≤60dB |
| MTBF | 100,000 hours |
