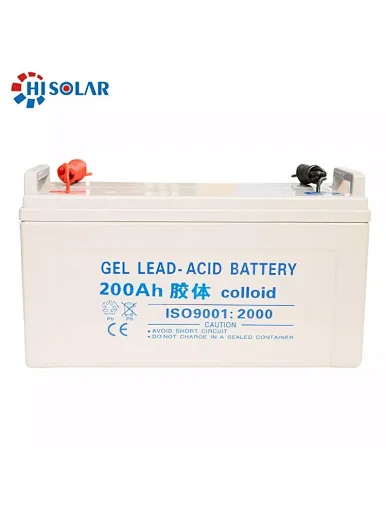

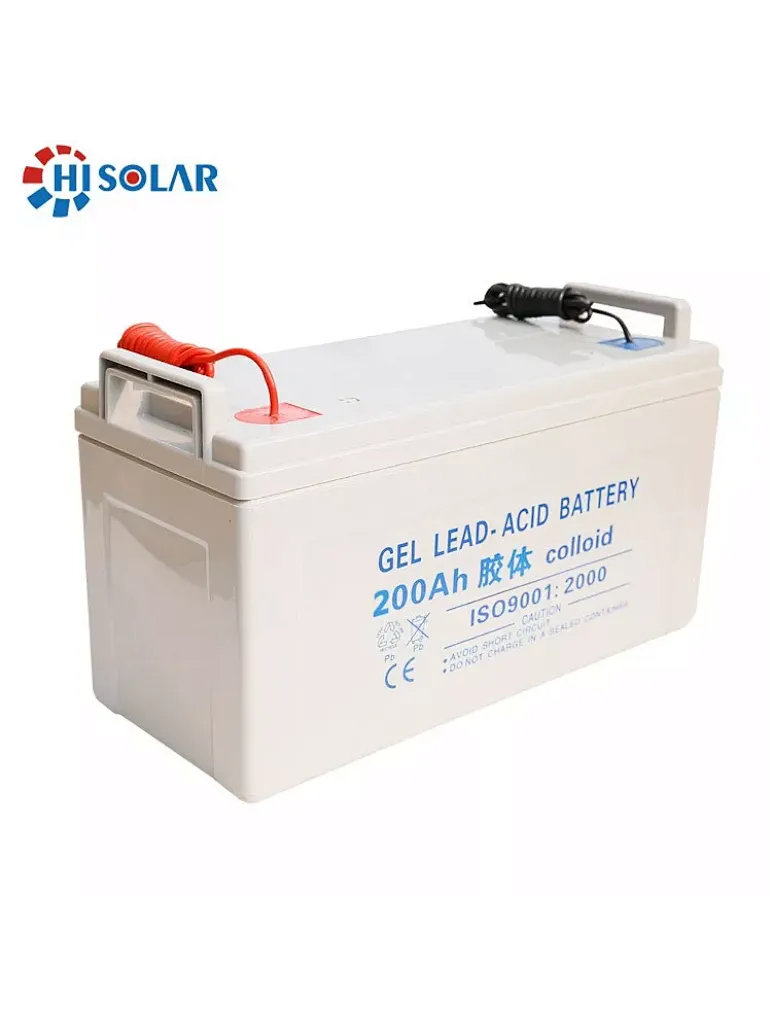

Deep Cycle Lead Acid 12V 200AH Solar System GEL Battery for off grid
Deep Cycle Lead Acid 12V 200AH Solar System GEL Battery for off grid
1
Quantity
| Internal Resistance | Fully charged battery at 25℃ | 8 m Ω |
| Capacity affected by temperature (20 hour rate) | 40℃ | 102% |
| 25℃ | 100% | |
| 0℃ | 85% | |
| -15℃ | 65% | |
| Self-Discharge At 25 ℃ | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% | |
| Capacity after 12 month storage | 64% | |
| Charge at Constant Voltage | Cycle use | Initial Charging Current less than 16A |
| Voltage 14.40~15.00V | ||
| Float use | Voltage 13.50~13.80V | |
| Cycle times at different Deep of Discharge (DOD) | 100% DOD | 520 times |
| 50% DOD | 1350 times | |
| 30% DOD | 2188 times |
