60KW 80KW 120KW EV DC Charging Station
DC-60KW/80KW
1

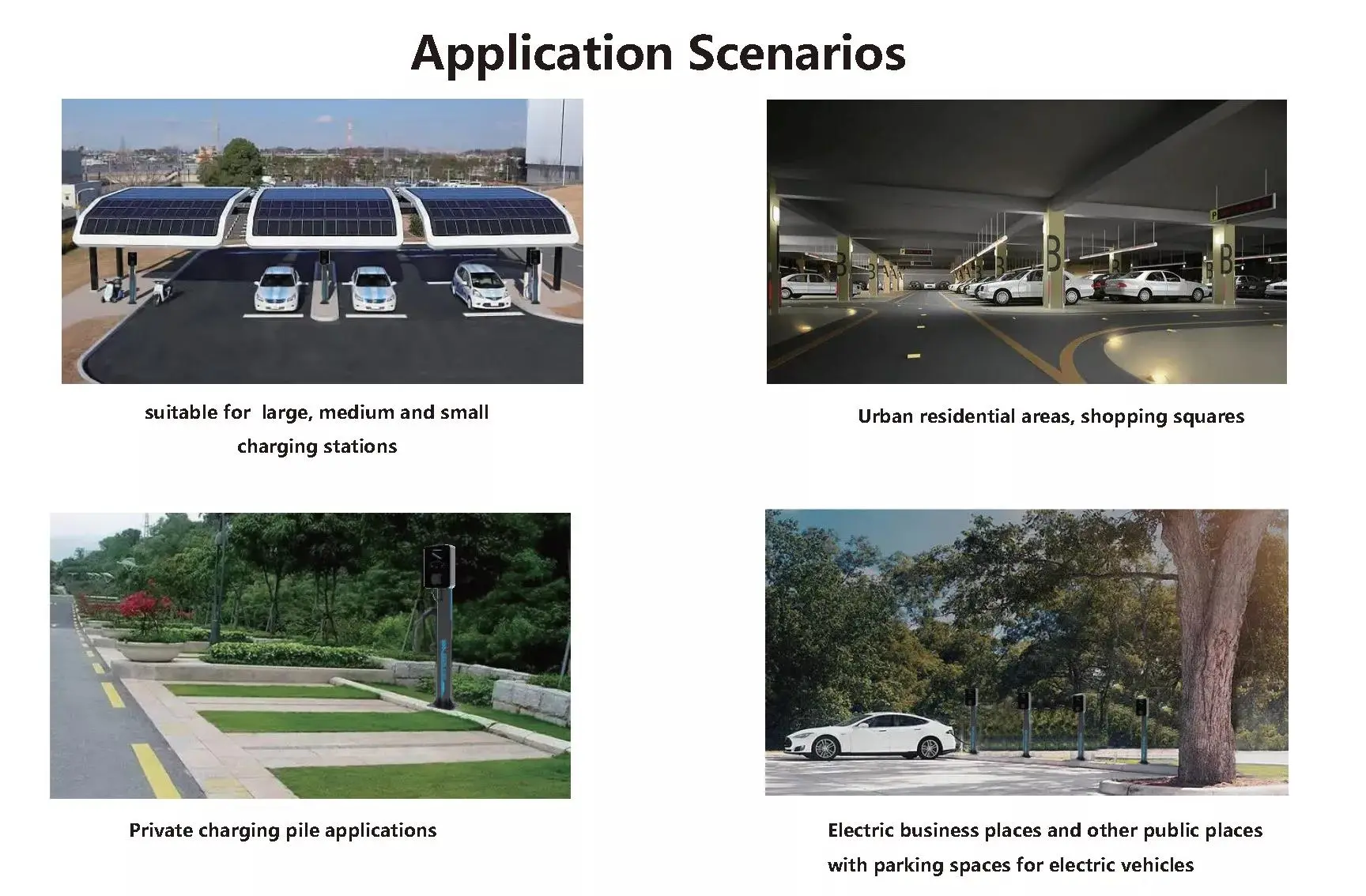

DC EV charging station is suitable for special urban charging stations (buses, taxis, official vehicles, sanitation vehicles, logistics vehicles, etc.); urban public charging stations (private cars, commuter cars, buses); urban residential communities, shopping plazas , Electric power business sites and other parking lots; inter-city expressway charging stations and other occasions that require DC fast charging, which are especially suitable for rapid deployment under limited site conditions.
Quantity
| SPECIFICATIONS | |
| Input Rating | |
| Input Voltage | AC380V±20% |
| Input Frequency | 50±10%Hz |
| Output Rating | |
| Output Voltage | 500V DC |
| Max output current | 54A |
| Detail | |
| User interface | Touch Screen |
| Installation | Floor Standing |
| Way of Routing | Down |
| Cable Length | 5m |
| Electrical Index | |
| Measurement Accuracy | Level 0.5 |
| Electrical Index | ≥11 |
| Current limit protection value | ≥110% |
| Features | |
| Charging Mode | Auto full/fixed power /fixed amount/ fixed time |
| Payment Method | APP payment/credit card payment/scan code payment |
| Interface | CAN/RS485/RS232 |
| Safety Design | |
| security function | Over/Under voltage protection. Over/Under frequencyprotection. Over/Under temperature protection. Over current protectionCurrent leakage protection, Grounding protection |
| Environmental Indicators | |
| Operating temperature | -25℃~+50℃ |
| Working humidity | 5%~95% non-condensing cream |
| Working elevation | <2000m |
| Protection level | Level IP55 |
| Cooling method | Fan Forced cooling |
| Noise control | ≤60dB |
| MTBF | 100.000 hours |
