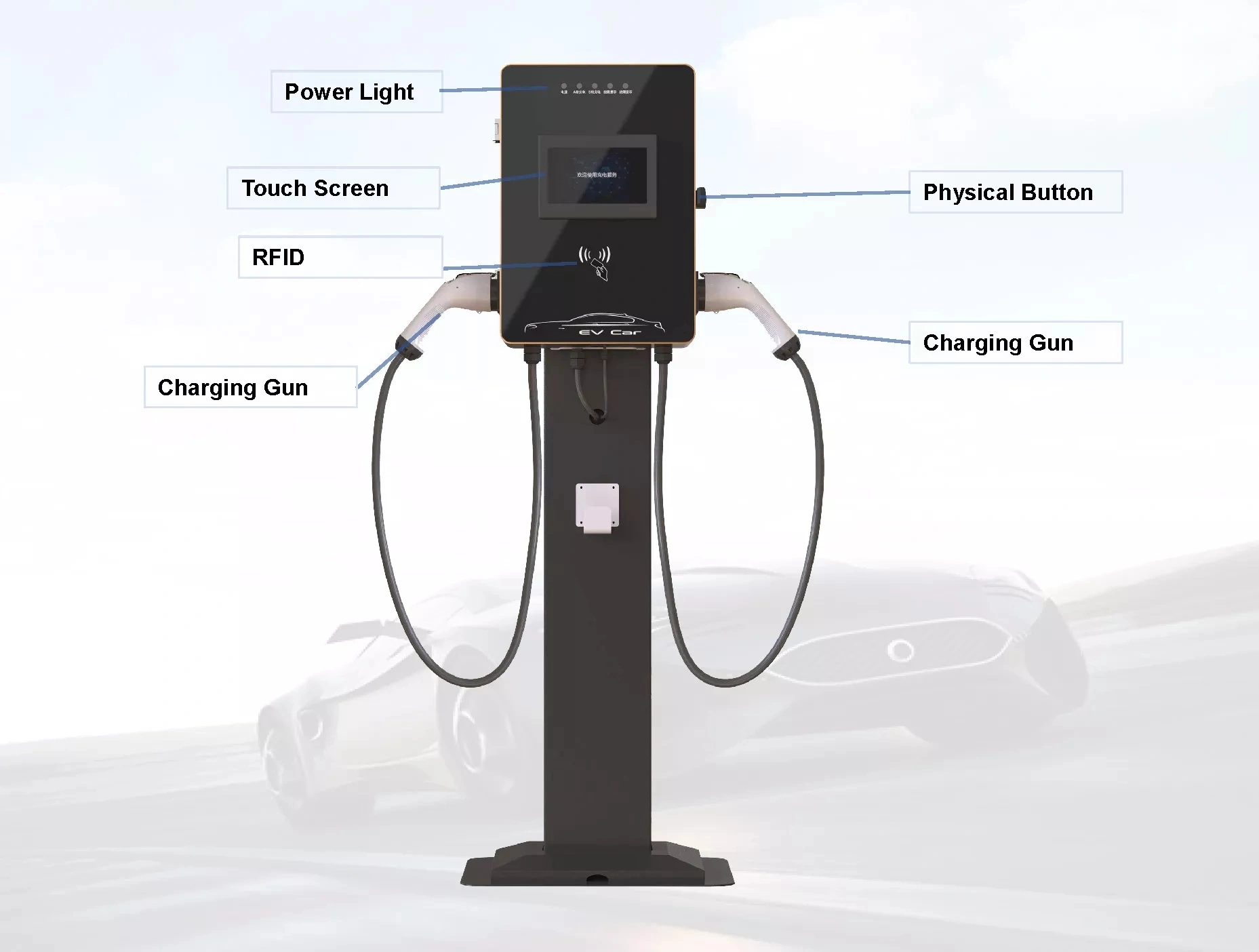

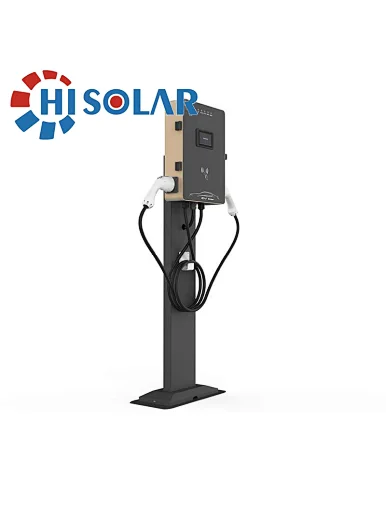

7Kw 14Kw 3 Phase Ev Fast Electric Vehicle Charging Point
AF-AC-7/14KW
1
AC EV charging station provides AC 50Hz, rated voltage 220V AC power supply, and is supplied to an electric vehicle with a vehicle charger.Mainly applicable to the following places Large, medium and small electric vehicle charging stations;Various public places with electric car parking spaces, such as urban residential quarters, shopping plazas, and electric power business places;High-speed service area, station terminal and other transportation hub areas.
Quantity
| Specification | |
| Warranty | 2 Year |
| Protection Level | Ip54 |
| Output Power | 7KW |
| 0CPP | 1.6 |
| Output Current Range | 0~32A |
| Connector | GB/T 20234.2-2015 |
| Installation method | Wall mount or floor mount |
| Size | 340*240*110mm; 480*350*120mm |
| Human-computer interaction | 4.3 inch touch screen |
| working environment | Altitude:≤2000m; Temperature: -20°C~ +50°C; |
| MOQ | 2 Pieces |
| charging method | Swipe card, scan code |
| Protective function | Overvoltage, undervoltage, overcurrent, short circuit, surge, leakage, etc. |
| Certificate | CE,RHOS |
| Work temperature | -25°C~50°C |
| long charging cable | Standard 3.5 meters (optional) |
