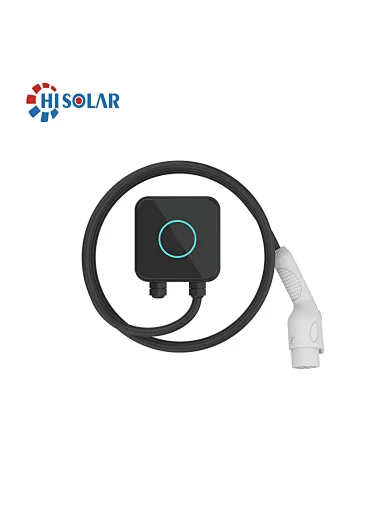

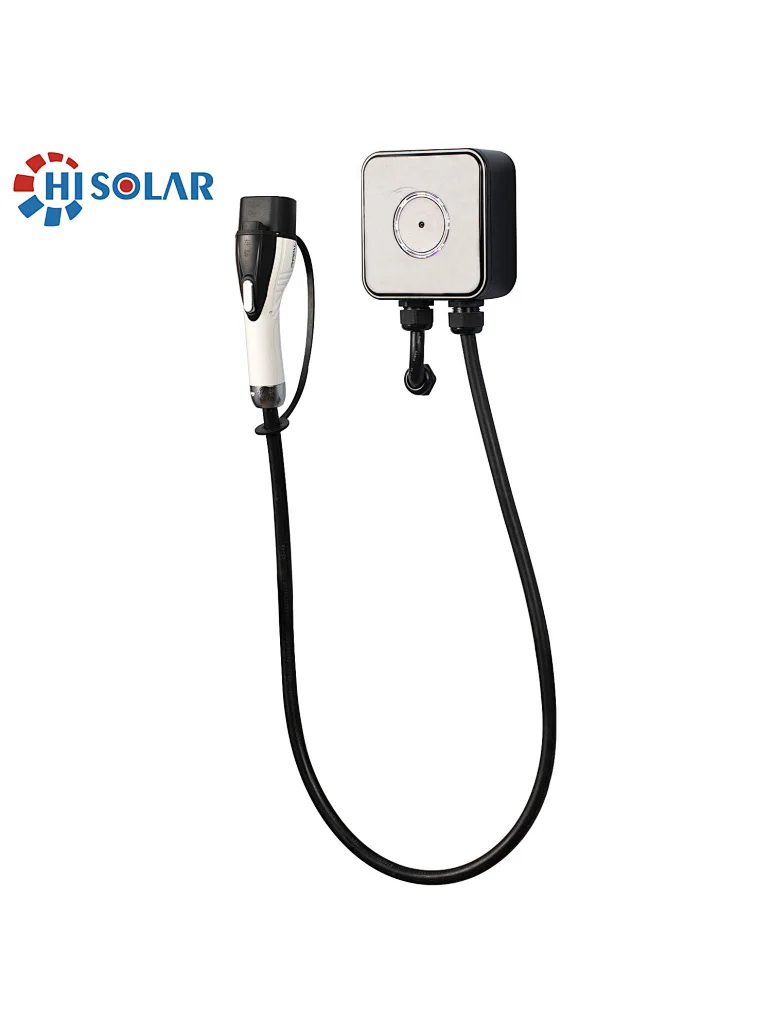

220V Type2 7kw EV Charger 16A Portable
AF-AC-7KW 32A
1
AC EV charging station provides AC 50Hz, rated voltage 220V AC power supply, and is supplied to an electric vehicle with a vehicle charger.Mainly applicable to the fllowing places Large,medium and small electric vehicle charging stations;Various public places with electric car parking spaces, such as urban residential quarters, shopping plazas, and electric power business places;High-speed service area, station terminal and other transportation hub areas.
Quantity
| Specification | |
| Rated Power | 7kw |
| Mounting | Wall mounting |

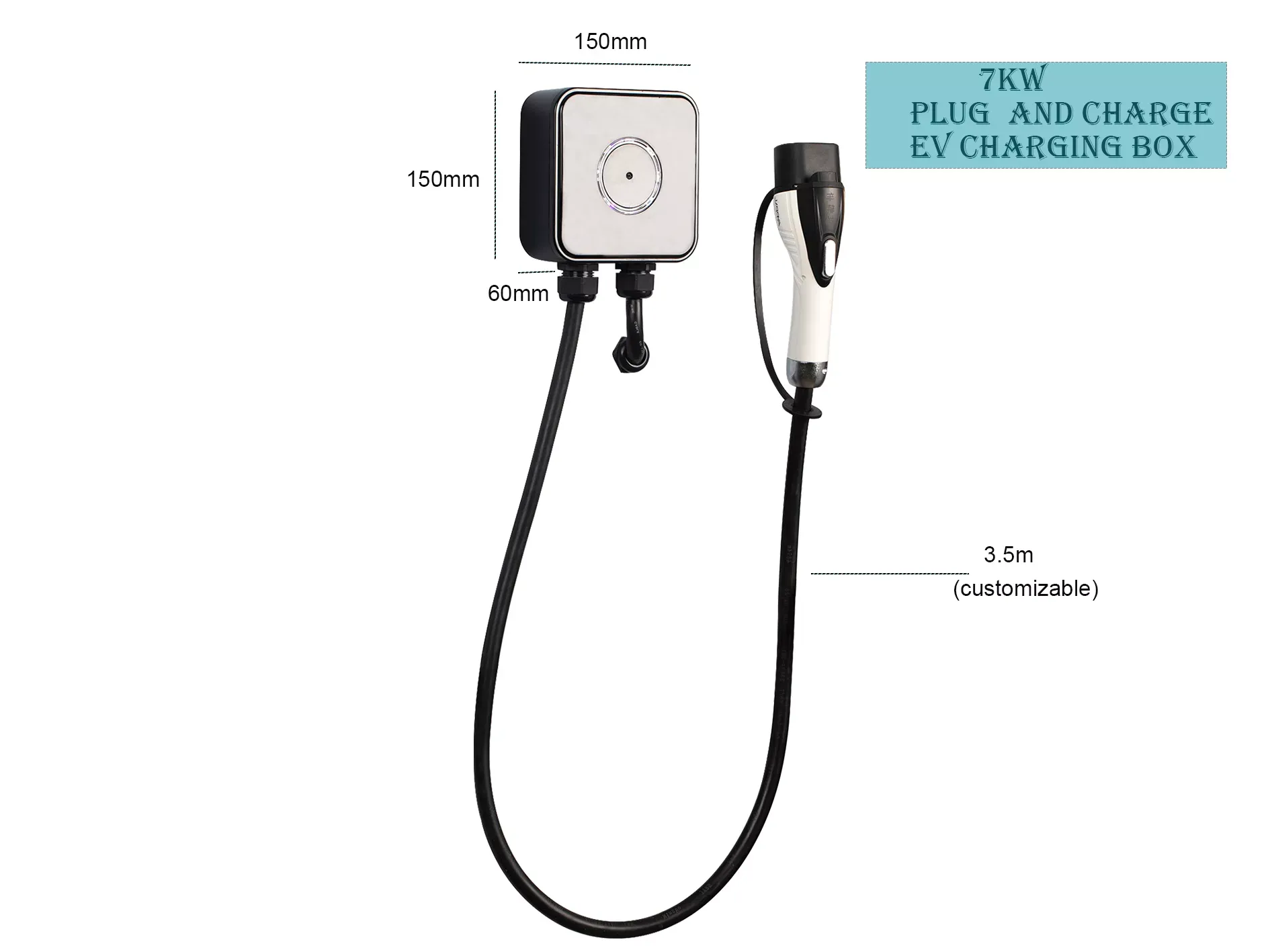

| Dimension | 150*1 50*60mm |
| Material | PC |
| Input voltage | 220Vac+20% |
| Input frequency | 50Hz+10% |
| Output current | 32A |
| Certificate | CE TUV |
| Work temperature | -20°C-50°C |
| Work altitude | ≤2000m |
| Work humidity | -5%-~95% non-condensation |
| Charging Mode | Plug and Charge |
| Protection Level | IP54 |
| Charging Wire length | 3. 5M (standard) support customize |
| Warranty | 12 months |

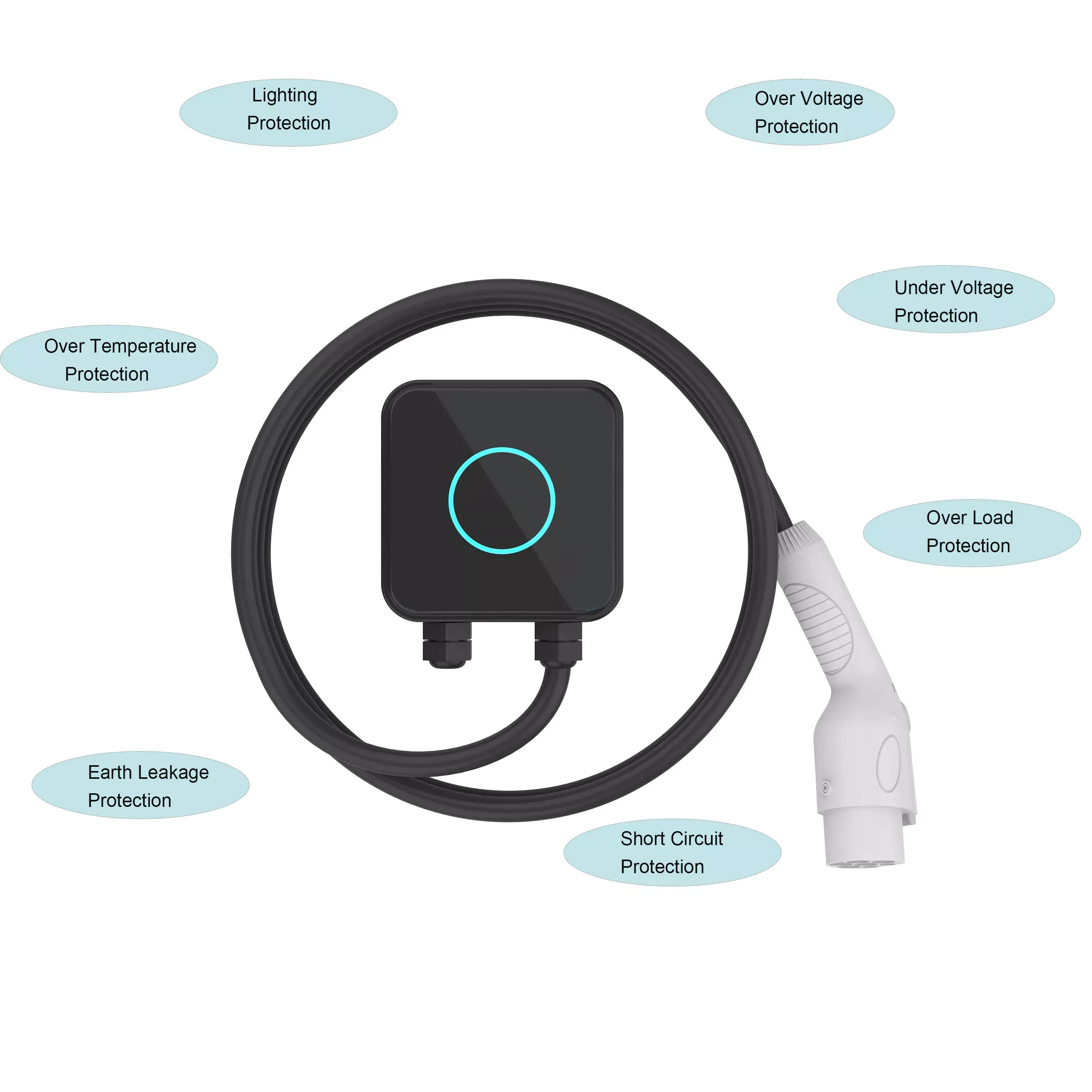

| Protection Fuction | Over Voltage Protection, Under voltage Protection, OVer Load Protection, Short Circuit Protection, Earth Leakage Protection,Over-temp Protection, Lighting Protection |
