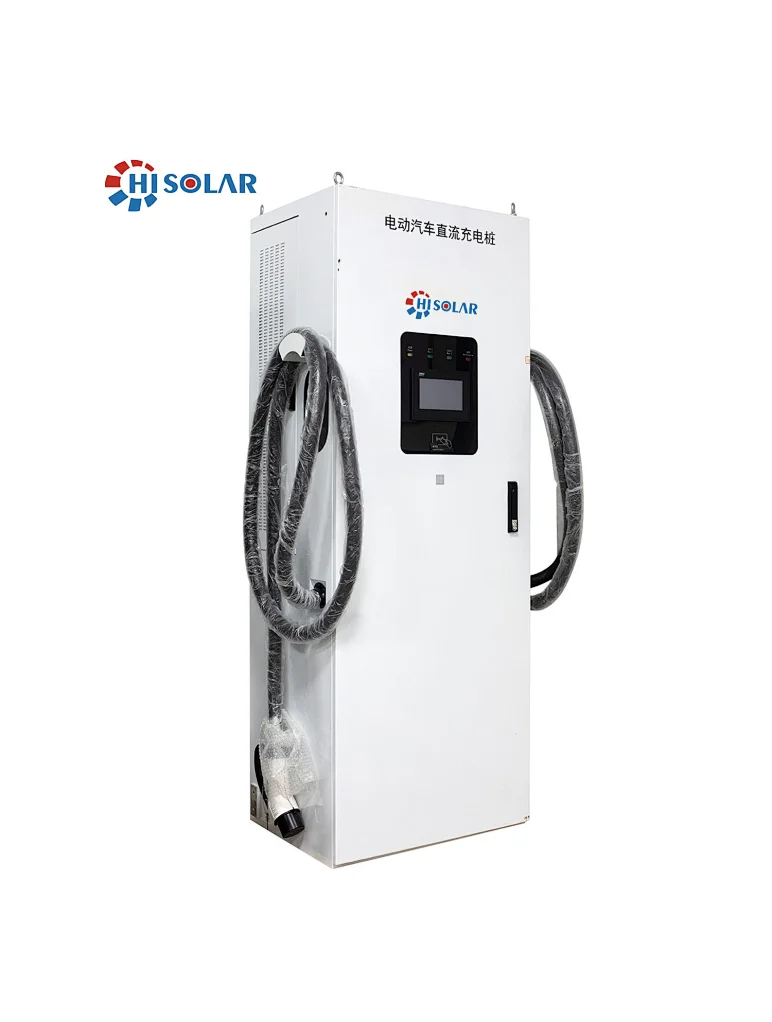

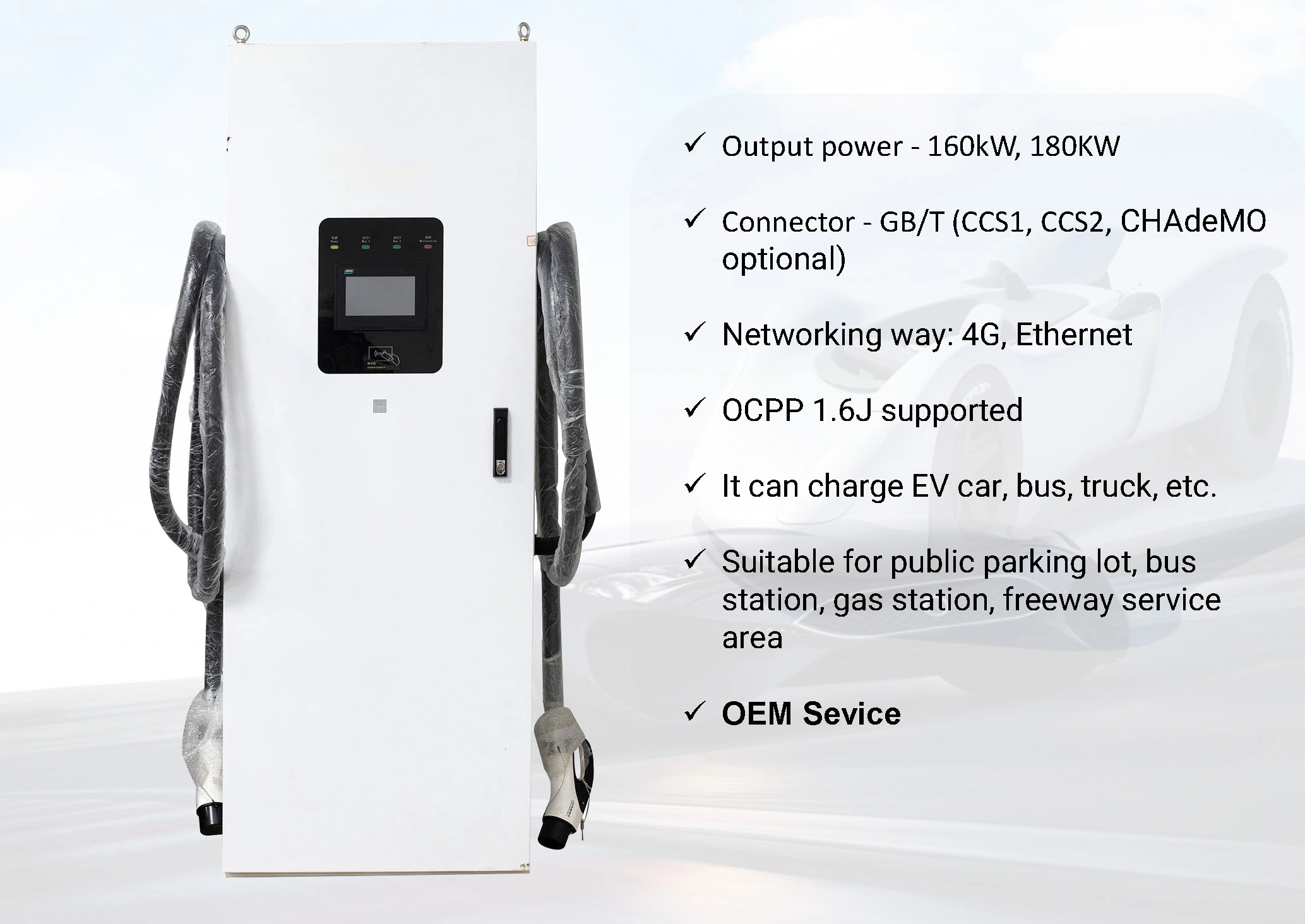

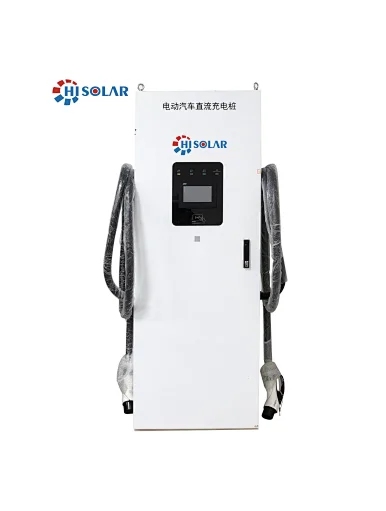

160kW 180kW DC Fast Car Battery Charging Piont public ev charger
DC-160KW/180KW
1
Quantity
| Specification | |
| Rated Power | 160kW/180kw |
| Charging Equipment | |
| Mounting | Floor Mounting |
| User Interface | 7-inch Display screen |

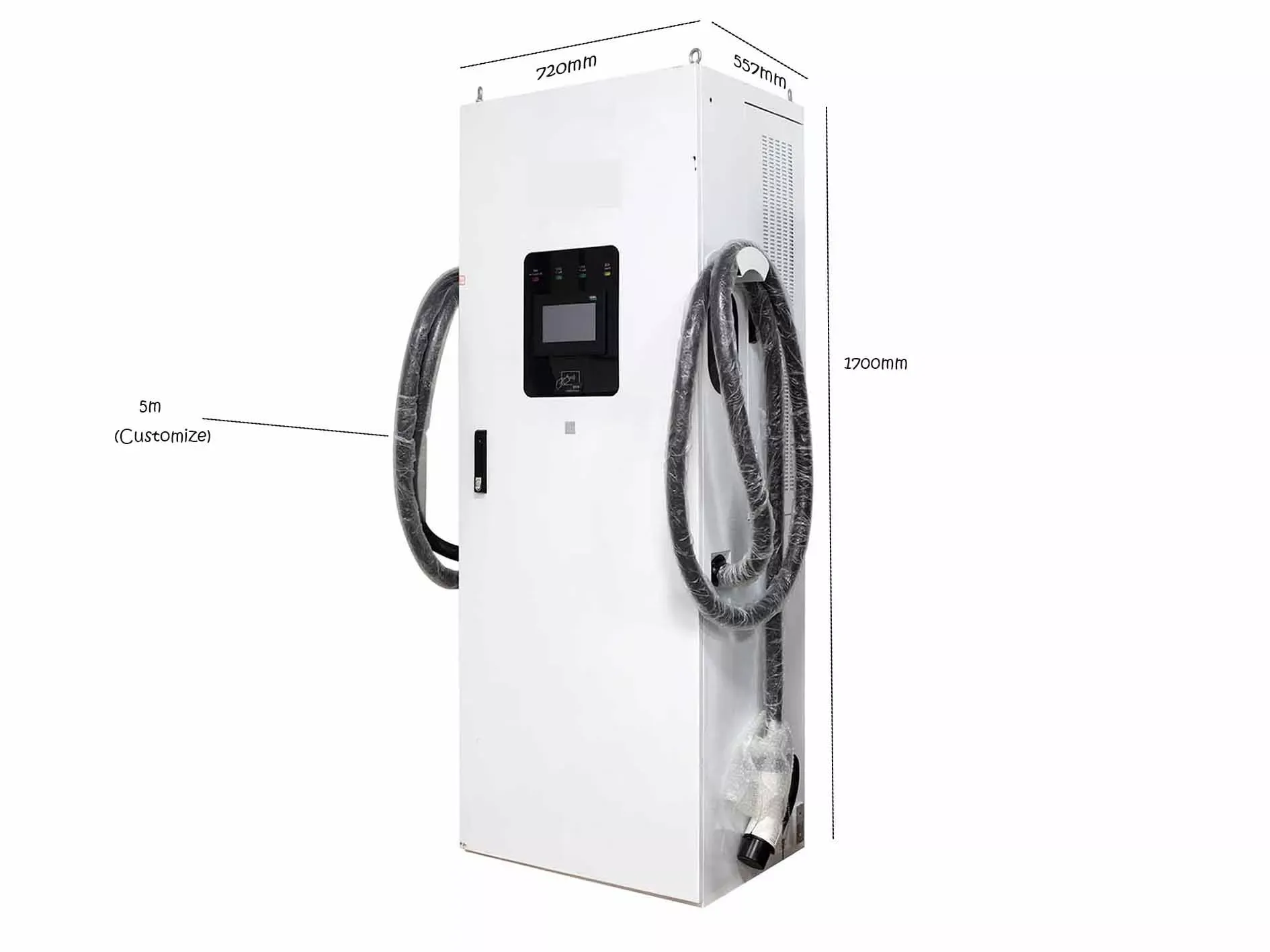

| Dimension | 720*557*1700mm |
| Input voltage | 380Vac±15% |
| Input frequency | 45~65Hz |
| Output Voltage | 200-270V |
| Output current range | 250A-280A |
| Cable Length | 5m |
| Electrical index | |
| Measurement accuracy | Level 0.5 |
| Current limit protection value | >110% |
| Voltage requlation accuracy | ≤±0.5% |
| Steady flow accuracy | ≤±1% |
| Ripple coefficient | ≤±0.5% |
| Effectivness | ±94.5% |
| Power factor | 299%(50% load or more |
| Harmonic content THD | ≤±5%(50% load more) |
| Feature design | |
| Charging mode | Auto full/fixed power/fixed amount/fixed time |

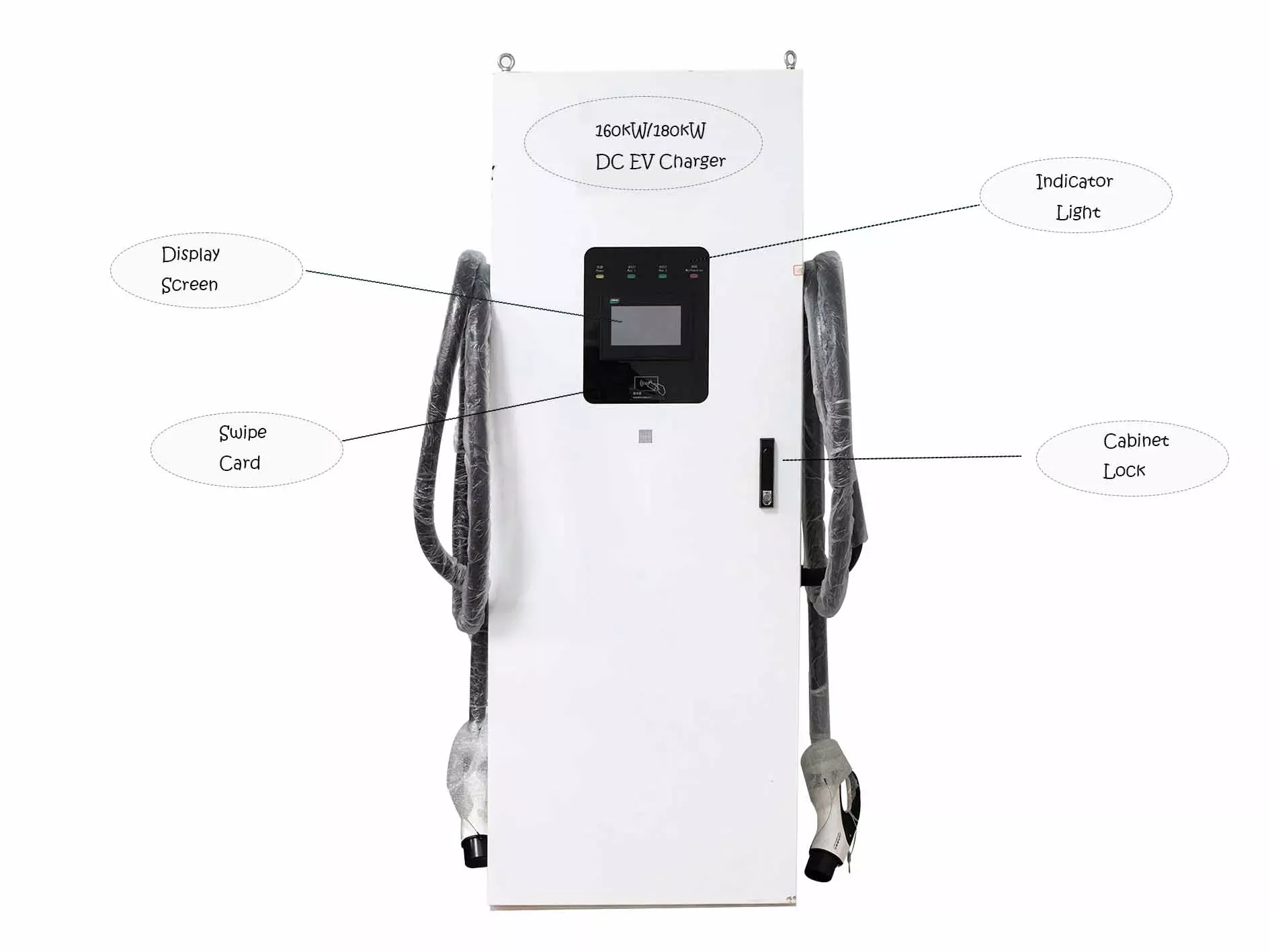

| Display | 7 inch LCD color Display touch Screen,LED INDicator |
| Payment Method | Credit card payment/App Payment/ SCan Code Payment |
| communication Interface | Ethemet2/3/4G(optional) |
| Environmental Indicator | |
| Operating Temperature | ~25~=50℃ |
| Working Humidity | 5%~95%non-condensing scream |
| Working elevation | <3000m |
| protection level | IP54 |
| Cooling Method | Forced Air Cooling |
| Noise Control | <60dB |
| MTBF | 100,000Hrs |
