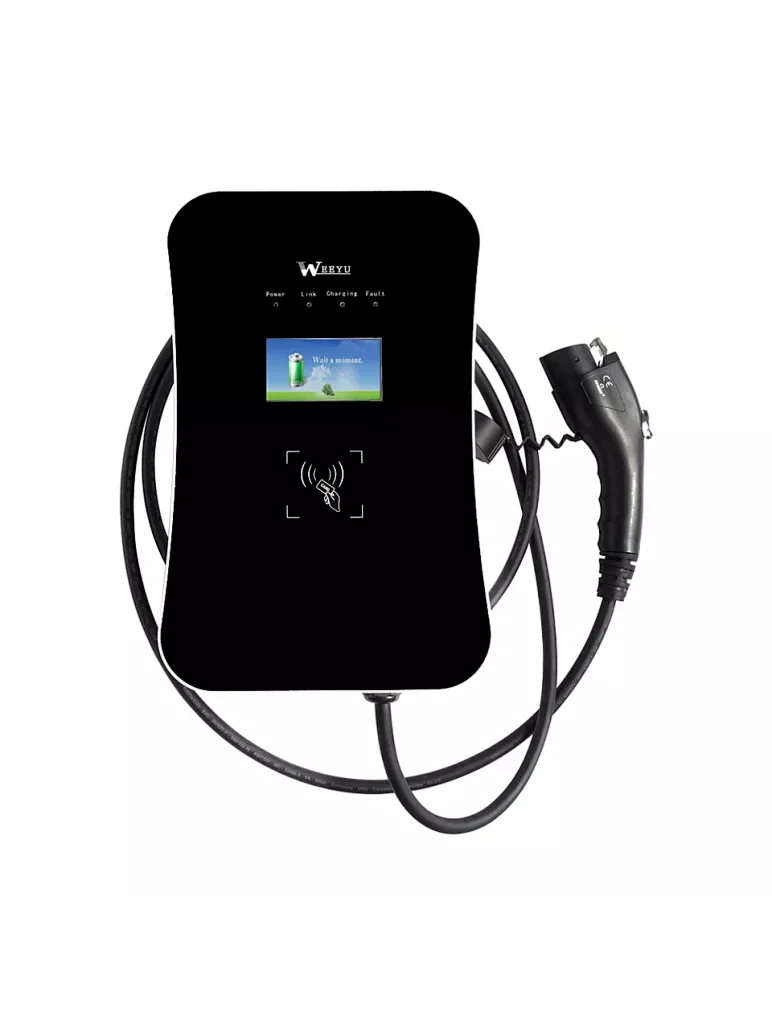

EV Charger Factory Manufacturer Ocpp Mennekes Type 2 32a 3 Phase 7kw 22kw Wallbox Fast Electric Charging Station EV Car Charger
EV Charger Factory Manufacturer Ocpp Mennekes Type 2 32a 3 Phase 7kw 22kw Wallbox Fast Electric Charging Station EV Car Charger
7kw 22kw Wallbox Fast Electric Charging Station
1
Quantity
PRODUCT PARAMETERS
General Information | ||||
Product Name | 7kw 11kw 22kw Wallbox AC Fast Electric EV Charging Station EV Car Charger | |||
Standard | IEC Standard | |||
Certificates | CE, ROHS, REACH | |||
Model Number | M3W132EN | M3W316EN | M3W332EN | |
Rated AC Voltage Power Input | 220V ±10% | 380V ±10% | 380V ±10% | |
Rated AC Power Output | 7kw/32amp | 11kw/16amp | 22kw/32amp | |
Current Adjustable | 6a ~32a | 6a ~16a | 6a ~32a | |
Rated Frequency | 50/60Hz | |||

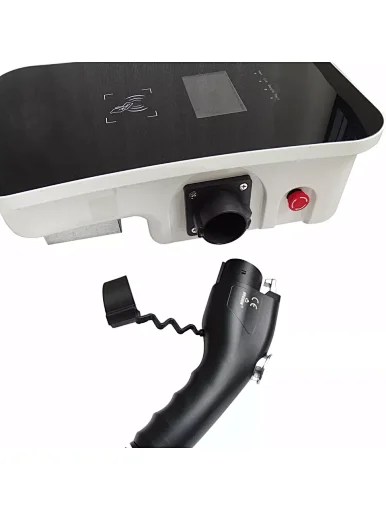

Charging Connector Type | IEC 62196-2 (Type 2/Mennekes) plug | |||
EVSE Charging Modes | Mode 3 Charging | |||
EVSE Connecting Type | Case C, Case B available | |||
Connector Type | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) | ||
User Interface & Control | ||||
Charging Control | 1. Plug in and out for start and stop charging | |||
2. Plug in, swipe RFID card to start and stop charging, then plug out | ||||
3. App control | ||||
Charging Data Monitoring: Power consumption, current, voltage etc. | 1. From screen | |||
2. From online managing system | ||||
3. From app | ||||
Adjusting Current | 1. From online managing system | |||
2. From app | ||||
Screen Display | 4.3-inch LCD Screen | |||

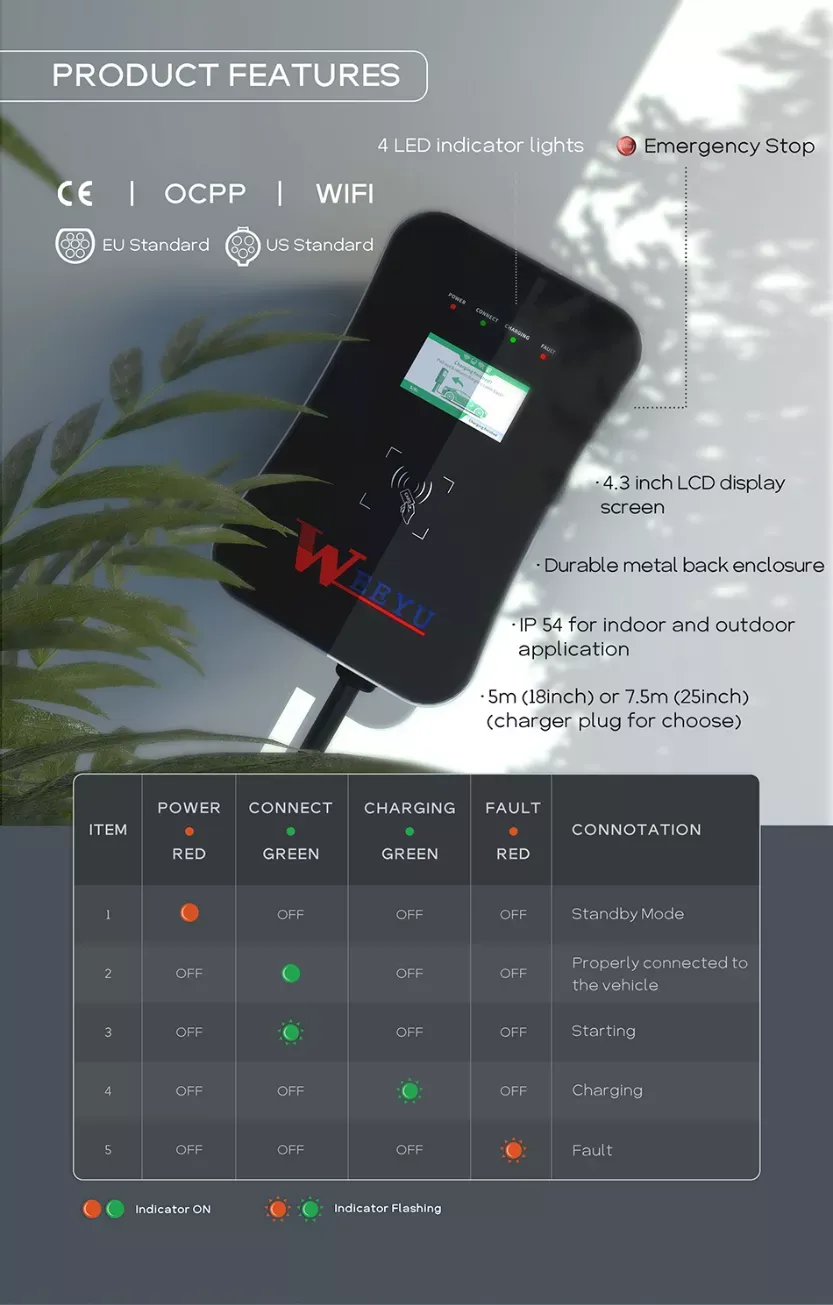

LED Indicators | 4 LED indicators-Power/Connect/Charging/Fault | |||
Internet Connection | 1.Ethernet/LAN (RJ-45) | |||
2. 2.4 GHz Wifi | ||||
3. LTE Category 4(4G optional)/SIM card module | ||||
External Communication | 1. OCPP 1.6J (optional) | |||
2. RS 485 (optional) | ||||
Operational Ratings | ||||
IP Ratings | CE certified IP54, suitable for indoor and outdoor application | |||
Storage Temperature | -40 to 75℃ （-40 to 167℉) ambient | |||
Operating Temperature | -30 to 55℃ （-22 to 131℉) ambient | |||
Operating Humidity | Up to 95% non-condensing | |||
Altitude | ≤2000m | |||

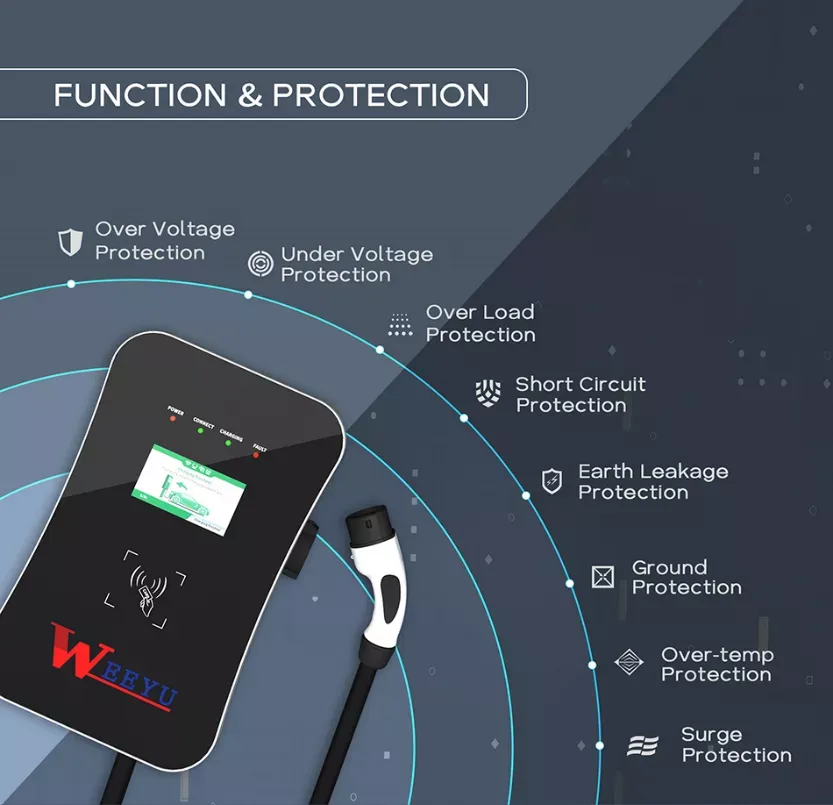

Protection：Type B RCD | ||||
Over Voltage Protection | Yes | Under Voltage Protection | Yes | |
Over Load Protection | Yes | Short Circuit Protection | Yes | |
Earth Leakage Protection | Yes | Ground Protection | Yes | |
Over-temp Protection | Yes | Surge Protection | Yes | |
Wallbox Mechanical | ||||

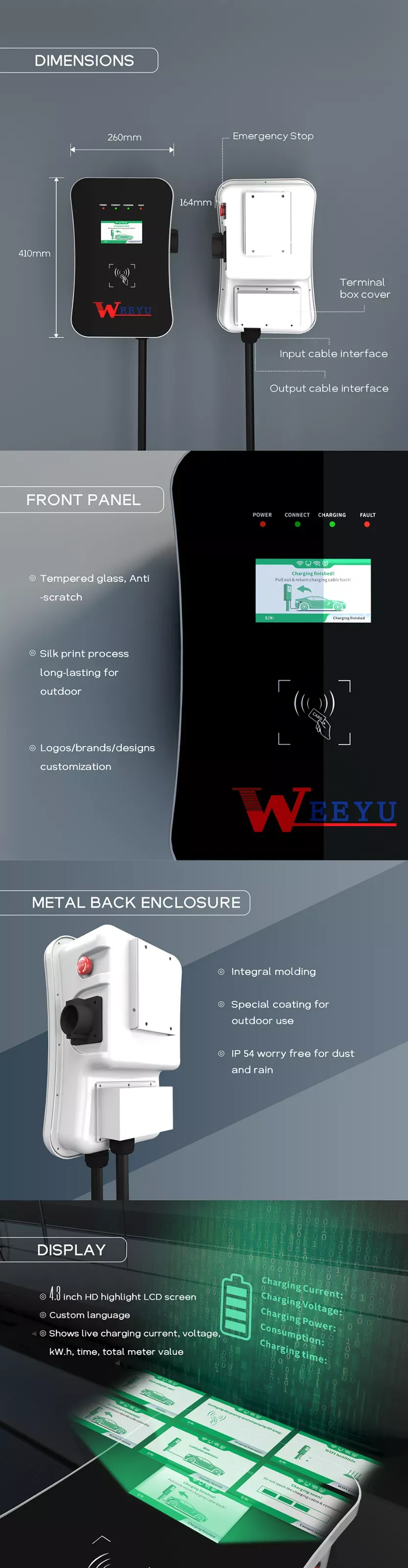

Dimension (H x W x D, mm) | 410 x 260 x 164 | |||
Weight | 1-phase＜10kg; 3-phase＜12kg | |||
Charging Cable Length | 5m，7m, or Customize Length | |||
Enclosure Material | Front-Panel: Tempered Glass; Back-cover: Metal Plate | |||
